Hudson Bearings 1 Inch Diameter, Round, Carbon Steel Ball Transfer 1-3/4 Inch Overall Diameter, 1-3/8 Inch Mount Height, 75 Lb. Capacity SBT-1CS 3/8 - 42941518
Brand: Hudson Bearings- SKU:
- 42941518
- ID:
- 465716
$5.38

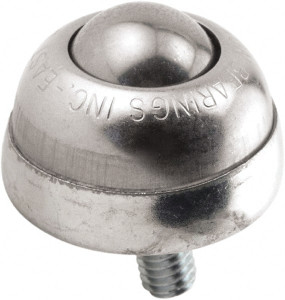

Hudson Bearings 1 Inch Diameter, Round, Carbon Steel Ball Transfer 1-3/4 Inch Overall Diameter, 1-3/8 Inch Mount Height, 75 Lb. Capacity
Manufacturer Part #: SBT-1CS 3/8
S/N: 42941518
UNSPSC: 31162700
(Minimum Order Quantity=1, Package Quantity=1)
Specifications:
| Base Shape | Round |
| Diameter (mm) | 25.40 |
| Mount Type | Threaded Stud |
| Ball Diameter (mm) | 25.40 |
| Mount Height (Fractional Inch) | 1-3/8 |
| Mount Height (Decimal Inch) | 1.3800 |
| Mount Height (mm) | 34.90 |
| Ball Material | Carbon Steel |
| Thread Size | 3/8-16 |
| Thread Length (Inch) | 18 |
| Thread Length (mm) | 18.00 |
| Thread Length (Decimal Inch) | 18.0mm, 18.0in |
| Overall Diameter (Inch) | 1-3/4 |
| Stud Length (mm) | 17.50 |
| Stud Length (Decimal Inch) | 2.7500 |
| Mounting Hole Diameter (Decimal Inch) | 0.3800 |
| Overall Length (mm) | 52.39 |
| Housing Material | Carbon Steel |
| Number Of Mounting Holes | 1 |
| Projection (mm) | 34.90 |
| Projection (Decimal Inch) | 1.3750 |
| Hardness | Hard |
| Base Diameter (mm) | 35.70 |
