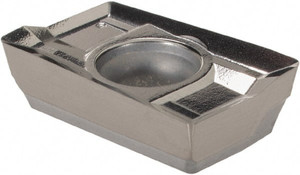

Walter Tools APHT15T3PDRK88 WK10 Carbide Milling Insert Uncoated, 0.1563" Thick 5004913 - 43709997
Brand: Walter Tools- SKU:
- 43709997
- ID:
- 663486
$32.15
Walter Tools APHT15T3PDRK88 WK10 Carbide Milling Insert Uncoated, 0.1563" Thick
Manufacturer Part #: 5004913
S/N: 43709997
UNSPSC: 23291601
(Minimum Order Quantity=1, Package Quantity=1)
Specifications:
| Insert Style | APHT |
| Insert Size | 15 |
| Insert Material | Solid Carbide |
| Insert Shape | Parallelogram |
| Manufacturer Grade | WK10 |
| Number Of Cutting Edges | 2 |
| Thickness (Decimal Inch - 4 Decimals) | 0.1563 |
| Coating/Finish | Bright/Uncoated |
| Relief Angle | 11 |
| Insert Size Code | 15T3 |
| Material Grade | N10 |
| Thickness (Inch) | 5/32 |
| Thickness Range (Decimal Inch) | 0.1500 to 0.1750 |
| Insert Hand | Right Hand |
| Series | APHT |
| Coating Process | Uncoated |
| Cutting Edge Effective Length (mm) | 15.00 |
| Rake | Positive |
| Primary Workpiece Material | Non-Ferrous Metal |
| Primary Workpiece Material Code | N |
| Ansi Code | APHT15T3PDR-K88 WK10 |
| Iso Code | APHT15T3PDR-K88 WK10 |
| Standards | ANSI, ISO |
| Rake Angle | 25 |
| Cutting Edge Style | Sharp |
| Manufacturers Catalog Number | APHT15T3PDR-K88 |
| Chip Breaker | K88 |
| Material Application | Non-Ferrous Metal |
| Insert Holding Method | Screw |
| Coating Classification | Uncoated |
| Single or Double Sided Insert | Single |
| Included Angle Degree | 85 |
| Width (Decimal Inch - 4 Decimals) | 0.5906 |
| Width (mm - 2 Decimals) | 15.00 |
| Multi-Use Tool | Yes |
