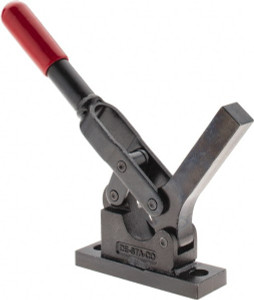

Destaco 600 Lb Holding Capacity, Horizontal Handle, Manual Hold Down Toggle Clamp 69° Handle Movement, 90° Bar Opening, Solid Bar, Flanged Base, Oxide Finish, Forged Alloy Steel 5305 - 44678449
Brand: Destaco- SKU:
- 44678449
- ID:
- 441413
$101.72
Destaco 600 Lb Holding Capacity, Horizontal Handle, Manual Hold Down Toggle Clamp 69° Handle Movement, 90° Bar Opening, Solid Bar, Flanged Base, Oxide Finish, Forged Alloy Steel
Manufacturer Part #: 5305
S/N: 44678449
UNSPSC: 31162902
(Minimum Order Quantity=1, Package Quantity=1)
Specifications:
| Handle Orientation | Horizontal |
| Bar Style | Solid |
| Base Style | Flanged |
| Bar End Type | Closed |
| Holding Capacity (N) | 2670.00 |
| Holding Capacity (Lb.) | 600.24 |
| Length Distance Between Mount Holes (mm) | 63.50 |
| Length Distance Between Mount Holes | 2.5in, 63.5mm |
| Length Distance Between Mount Holes (Inch) | 2.5 |
| Height Under Bar (Decimal Inch) | 1.1200 |
| Height Under Bar (mm) | 28.45 |
| Overall Length (mm) | 212.34 |
| Overall Length (Decimal Inch) | 8.3600 |
| Overall Height (Decimal Inch) | 1.5100 |
| Overall Height (Mm - 5 Decimals) | 38.35 |
| Base Length (mm) | 80.01 |
| Base Width (Inch) | 0.9800 |
| Base Width | 24.89 |
| Handle Style | Straight |
| Material | Forged Alloy Steel |
| Handle Material | Forged Alloy Steel |
| Handle Color | Red |
| Bar Opening (Degrees) | 90 |
| Handle Movement (Degrees) | 69 |
| Bar Width (mm) | 12.95 |
| Bar Width (Decimal Inch) | 0.5100 |
| Bar Thickness (mm) | 12.95 |
| UNSPSC Code | 31162902 |
| Bar Thickness (Decimal Inch) | 0.5100 |
| Front Of Base To Toggle Tip | 2.12in |
| Front of Base To Tip Of Toggle Bar (Decimal Inch) | 2.1200 |
| Front of Base To Tip Of Toggle Bar (mm) | 53.85 |
| Number Of Mounting Holes | 4 |
| Finish Coating | Oxide |
