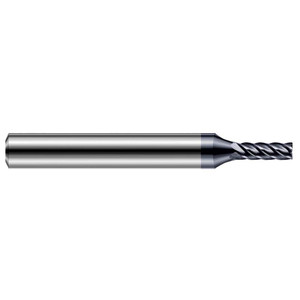

Harvey Tool Corner Radius & Corner Chamfer End Mills, Mill Diameter (Inch): 3/16, Mill Diameter (Decimal Inch): 0.1875, End Type: Corner Radius, Corner Radius (Inch): 1/64, Corner Radius (Decimal Inch): 0.0150, No. of Flutes: 5 852812-C6 - 46056776
Brand: Harvey Tool- SKU:
- 46056776
- ID:
- 615612
$118.44
Harvey Tool Corner Radius & Corner Chamfer End Mills, Mill Diameter (Inch): 3/16, Mill Diameter (Decimal Inch): 0.1875, End Type: Corner Radius, Corner Radius (Inch): 1/64, Corner Radius (Decimal Inch): 0.0150, Number of Flutes: 5
Manufacturer Part #: 852812-C6
S/N: 46056776
UNSPSC: 27112803
(Minimum Order Quantity=1, Package Quantity=1)
Specifications:
| Mill Diameter (Inch) | 3/16 |
| Mill Diameter (Decimal Inch) | 0.1875 |
| Number Of Flutes | 5 |
| Length of Cut (Inch) | 9/16 |
| Single Or Double End | Single |
| End Mill Material | Solid Carbide |
| Coating/Finish | AlTiN |
| Overall Length (Inch) | 2-1/2 |
| Centercutting | Yes |
| Flute Direction | Right Hand |
| Corner Radius (Decimal Inch) | 0.0150 |
| Variable Index | No |
| Variable Helix | Yes |
| Cutting Direction | Right Hand |
| Coolant Through | No |
| Pitch | Close |
| Overall Length (Decimal Inch) | 2.5 |
| Chipbreaker | No |
| End Type | Corner Radius |
| Length Of Cut (Decimal Inch - 4 Decimals) | 0.5620 |
| Length Type | Regular |
| Flute Type | Spiral |
| Extended Reach | No |
| Shank Type | Straight-Cylindrical |
| Material Removal Type | Roughing & Finishing |
| Shank Diameter (Decimal Inch) | 0.2500 |
| Shank Diameter (Inch) | 1/4 |
| Corner Radius Tolerance | 0.0010 to -0.0010 in |
| Mill Diameter Tolerance | 0.0000/-0.0020 in |
| Shank Diameter Tolerance | h6 |
| Overall Length Tolerance | 0.0100/-0.0000 in |
| Primary Workpiece Material | Steel, Stainless Steel, Cast Iron, Hard Material |
| Primary Workpiece Material Code | P, M, K, H |
| UNSPSC Code | 27112803 |
| Series | End Mills for Hardened Steels - Corner Radius - For Steels Up to 55 Rc, Material Specific End Mills |
| Material Application | Cast Iron, Steel, Stainless Steel, Hard Alloy |
| Coating Classification | PVD |
| For Use With. | High Precision Toolholders |
