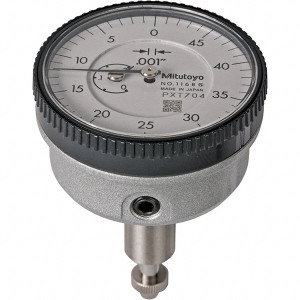

Mitutoyo Dial Drop Indicator: 0 to 0.2" Range, 50-0 Dial Reading, 0.001" Graduation 0.5" per Revolution, Plunger Back, 0.001000" Accuracy, Revolution Counter, Includes Limit Markers & Rotating Bezel 1168A - 47194444
Brand: Mitutoyo- SKU:
- 47194444
- ID:
- 794034
$213.32
Mitutoyo Dial Drop Indicator: 0 to 0.2" Range, 50-0 Dial Reading, 0.001" Graduation 0.5" per Revolution, Plunger Back, 0.001000" Accuracy, Revolution Counter, Includes Limit Markers & Rotating Bezel
Manufacturer Part #: 1168A
S/N: 47194444
(Minimum Order Quantity=1, Package Quantity=1)
Specifications:
| Accuracy (Decimal Inch) | 0.001000 |
| Back Type | Plunger |
| Indicator Style | Plunger |
| Minimum Measurement (Decimal Inch) | 0.0000 |
| Maximum Measurement (Decimal Inch) | 0.2000 |
| Dial Graduation (Decimal Inch) | 0.001000 |
| Dial Reading | 50-0 |
| Measuring Force (N) | 0.4 to 1.4 |
| Dial Diameter (mm) | 40.00 |
| Stem Diameter (Inch) | 3/8 |
| Stem Length (mm) | 10.90 |
| Overall Length (mm) | 58.00 |
| Dial Color | White |
| Thread Size | #4-48 |
| Revolution Counter | Yes |
| Features | Crystal is Glare-Free, Scratch-Resistant |
| Includes | Limit Markers, Rotating Bezel |
| Standards | ANSI/AGD |
| AGDGpNo | 0 |
| Range Per Revolution (Decimal Inch) | 0.5000 |
