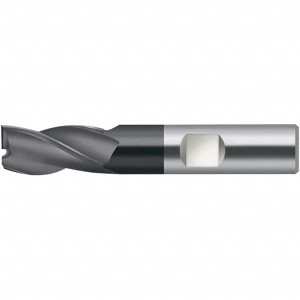

Walter Prototyp 3.8mm, 5mm LOC, 6mm Shank Diam, 54mm OAL, 3 Flute, Solid Carbide Square End Mill TiAlN Finish, 30° Helix, Right Hand Cut, Right Hand Flute, Series MC716-W-3-A 6959891 - 47317193
Brand: Walter Prototyp- SKU:
- 47317193
- ID:
- 638079
$68.63
Walter Prototyp 3.8mm, 5mm LOC, 6mm Shank Diam, 54mm OAL, 3 Flute, Solid Carbide Square End Mill TiAlN Finish, 30° Helix, Right Hand Cut, Right Hand Flute, Series MC716-W-3-A
Manufacturer Part #: 6959891
S/N: 47317193
UNSPSC: 27112803
(Minimum Order Quantity=1, Package Quantity=1)
Specifications:
| Mill Diameter (mm) | 3.80 |
| Mill Diameter (Decimal Inch) | 0.1500 |
| Number Of Flutes | 3 |
| End Mill Material | Solid Carbide |
| Length of Cut (Decimal Inch) | 0.2000 |
| Length of Cut (Inch) | 13/64 |
| Length of Cut (mm) | 5.00 |
| Shank Diameter (mm) | 6.00 |
| Shank Diameter (Decimal Inch) | 0.2360 |
| Overall Length (Decimal Inch) | 2.1260 |
| Overall Length (mm) | 54.00 |
| Centercutting | Yes |
| Cutting Direction | Right Hand |
| Flute Direction | Right Hand |
| Helix Angle | 30 |
| Primary Workpiece Material | Steel |
| Primary Workpiece Material Code | P |
| Secondary Workpiece Material | Cast Iron, Stainless Steel, Super Alloys & Titanium |
| Secondary Workpiece Material Code | K, M, S |
| Variable Helix | No |
| Variable Index | No |
| Flute Type | Helical |
| Shank Type | Straight-Cylindrical |
| Reach Length (Decimal Inch) | 0.1970 |
| Reach Length (mm) | 5.00 |
| Length Of Cut Range (Decimal Inch) | 0.2000 - 0.3000 |
| Mill Diameter Tolerance | h10 |
| Shank Diameter Tolerance | h6 |
| Series | MC716-W-3-A |
