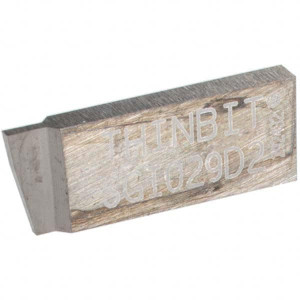

THINBIT DM2.029W Carbide Grooving Insert Uncoated, Neutral, 0.029" Cutting Width, 0.087" Max Depth SGI029D2 - 48747117
Brand: THINBIT- SKU:
- 48747117
- ID:
- 651782
$27.12
THINBIT DM2.029W Carbide Grooving Insert Uncoated, Neutral, 0.029" Cutting Width, 0.087" Max Depth
Manufacturer Part #: SGI029D2
S/N: 48747117
UNSPSC: 23242105
(Minimum Order Quantity=1, Package Quantity=1)
Specifications:
| Insert Style | SGI |
| Insert Size Code | 029 |
| Cutting Width (Decimal Inch) | 0.029 |
| Insert Hand | Neutral |
| Maximum Depth of Cut (Decimal Inch) | 0.0870 |
| Insert Material | Carbide |
| Manufacturer Grade | Dura-Max 2000 |
| Full Radius | No |
| Rake | Neutral |
| Insert Size | 029 |
| Material Grade | C4, C5 |
| Maximum Depth Of Cut Range (Decimal Inch) | 0.0750 to 0.1000 |
| Cutting Height (Decimal Inch) | 0.2400 |
| Lead Angle | 0degree |
| Multi-use Tool | No |
| Rake Angle | 0 |
| Overall Length (Decimal Inch) | 0.65 |
| Primary Workpiece Material | Cast Iron, Stainless Steel, Steel |
| Standards | ANSI |
| UNSPSC Code | 23242105 |
| Overall Width (Decimal Inch - 4 Decimals) | 0.068 |
| Coating/Finish | Bright/Uncoated |
