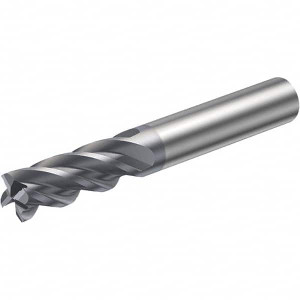

Sandvik Coromant 3.5mm Diam 4 Flute Solid Carbide 0.0051" Chamfer Width Corner Radius End Mill AlCrN Finish, 57mm OAL, 10mm LOC, 6mm Shank Diam, 37° Helix, RH Cut, RH Flute, Centercutting, 2.2441" Extended Reach 6260101 - 49554413
Brand: Sandvik Coromant- SKU:
- 49554413
- ID:
- 618001
$130.49
Sandvik Coromant 3.5mm Diam 4 Flute Solid Carbide 0.0051" Chamfer Width Corner Radius End Mill AlCrN Finish, 57mm OAL, 10mm LOC, 6mm Shank Diam, 37° Helix, RH Cut, RH Flute, Centercutting, 2.2441" Extended Reach
Manufacturer Part #: 6260101
S/N: 49554413
UNSPSC: 27112803
(Minimum Order Quantity=1, Package Quantity=1)
Specifications:
| Mill Diameter (Decimal Inch) | 0.1378 |
| Mill Diameter (mm) | 3.50 |
| Number Of Flutes | 4 |
| Length of Cut (mm) | 10.00 |
| Single Or Double End | Single |
| End Mill Material | Solid Carbide |
| Coating/Finish | AlCrN |
| Centercutting | Yes |
| Flute Direction | Right Hand |
| Variable Index | No |
| Variable Helix | No |
| Cutting Direction | Right Hand |
| Overall Length (mm) | 57.00 |
| Coolant Through | No |
| Pitch | Normal |
| Chipbreaker | No |
| Length Of Cut (Decimal Inch - 4 Decimals) | 0.3937 |
| Length Type | Long |
| Flute Type | Helical |
| Extended Reach | No |
| Shank Type | Straight-Cylindrical |
| Material Removal Type | Roughing |
| Shank Diameter (mm) | 3.50 |
| Neck Diameter (mm) | 6.00 |
| Neck Diameter (Decimal Inch) | 0.2362 |
| Reach Length (Decimal Inch) | 2.2441 |
| Mill Diameter Tolerance | h10 |
| Shank Diameter Tolerance | h6 |
| Primary Workpiece Material | Steel, Cast Iron |
| Primary Workpiece Material Code | P, K |
| UNSPSC Code | 27112803 |
| Series | 2P340 |
| Coating Classification | PVD |
| Proprietary Coating Designation | Multilayer Coating |
| For Use With. | Toolholder |
| Helix Style | Medium |
