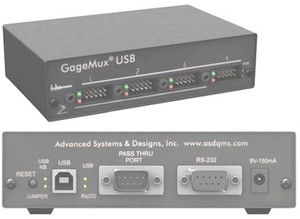

ASD/QMS GageMux USB Gage Interface - 500-8-KUSB

Brand:   ASD/QMS
SKU:
500-8-KUSB
ID:
114696
callling
$1,095.00
Current Stock:
Adding to cart… The item has been added




ASD/QMS GageMux USB Gage Interface

The GageMux® USB is the newest addition to ASDQMS’s line of Universal Interfaces

GageMux® USB easily connects devices to PC via…

  • 2, 4 and 8 Input Port Models
  • Gage Input: Support for gages from over 500 different manufactures
  • Simple Set-up, your PC automatically installs USB driver when GageMux is plugged into PC’s USB port
  • Supports USB 2.0, RS232 and Keyboard (optional) output

Special feature:

  • Simple plug and play set up—doesn’t require software configuration
  • Operating modes: Static (Normal) mode operation or Dynamic (MIN / MAX / TIR)
  • Footswitch input, LED status light on each input, host command operation and set up
  • Use Internal rotary switches to configure interface, or use optional PC program to configure options
  • GagePort Emulation, makes our GageMux USB look like a GP-2104, works with all Gagetalker compatible software.

Before the invention of the GageMux®, inspectors either checked the quality of components by hand, writing the results on a clipboard, or trundled a cumbersome computer across the shop floor. ASDQMS’ GageMux® has revolutionized data collection and storage. By converting analog or digital input into a standard serial ASCII RS232 or Mitutoyo signal, it allows users to connect hundreds of different types of measuring devices and gages to an automated data collection system such as a PC or hand-held computer.

The GageMux® supports 2, 4 or 8 inputs (daisy-chaining up to 500 gages) and reads directly from Mitutoyo compatible gages including… MTI digimatic output gages, Mahr Federal uMaxum , Mahr Federal Maxum Plus, III and Dimension Air gages, CDILogic, Starrett Wisdom, Chatillon DFIS, and Fowler Ultra Logic.
