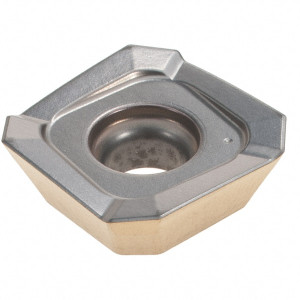

Iscar SEMT140405ATR IC330 Carbide Milling Insert TiCN/TiN Finish, 0.559" Long x 0.195" Thick 5607692 - 50094408
Brand: Iscar- SKU:
- 50094408
- ID:
- 660182
$33.42
Iscar SEMT140405ATR IC330 Carbide Milling Insert TiCN/TiN Finish, 0.559" Long x 0.195" Thick
Manufacturer Part #: 5607692
S/N: 50094408
UNSPSC: 23291601
(Minimum Order Quantity=10)
(Please order in multiples of 10)
Specifications:
| Insert Style | SEMT |
| Insert Size | 14 |
| Insert Material | Solid Carbide |
| Insert Shape | Square |
| Manufacturer Grade | IC330 |
| Corner Radius (Decimal Inch) | 0.0197 |
| Number Of Cutting Edges | 4 |
| Thickness (Decimal Inch - 4 Decimals) | 0.1950 |
| Coating/Finish | TiCN, TiN |
| Relief Angle | 20 |
| Maximum Depth of Cut (Decimal Inch) | 0.2170 |
| Maximum Depth of Cut (mm) | 5.51 |
| Insert Size Code | 140405 |
| Inscribed Circle (Decimal Inch) | 0.5590 |
| Thickness Range (Decimal Inch) | 0.1850 to 0.2000 |
| Inscribed Circle Range (Decimal Inch) | 0.5100 to 0.6000 |
| Length Range (Decimal Inch) | 0.5000 to 0.6000 |
| Insert Hand | Right Hand |
| Series | HELIOCTO |
| Coating Process | PVD |
| Cutting Edge Effective Length (Decimal Inch) | 0.5394 |
| Rake | Positive |
| Primary Workpiece Material | Steel, Stainless Steel, Superalloys & Titanium |
| Primary Workpiece Material Code | P, M, S |
| Secondary Workpiece Material Code | S |
| Ansi Code | SEMT 140405ATR IC330 |
| Iso Code | SEMT 140405ATR |
| Standards | ANSI, ISO 13399 |
| Cutting Edge Style | Helical |
| Manufacturers Catalog Number | SEMT 140405ATR IC330 |
| Cutter Series Compatibility | HOF-R06, HOE-R06 |
| Chip Breaker | ATR |
| Material Application | Steel, Stainless Steel, Superalloys & Titanium |
| Insert Holding Method | Screw |
| Coating Classification | PVD |
| Single or Double Sided Insert | Single |
| Included Angle Degree | 90 |
| Width (Decimal Inch - 4 Decimals) | 0.5591 |
| Width (mm - 2 Decimals) | 14.20 |
| Multi-Use Tool | Yes |
| Length (Decimal Inch - 4 Decimals) | 0.5591 |
