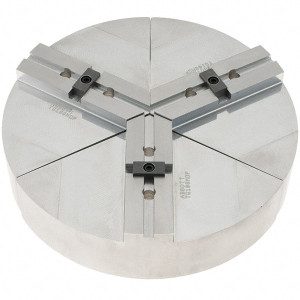

Abbott Workholding 8" Max Chuck Capacity, Tongue & Groove Interface, Round Soft Lathe Chuck Jaw 3 Jaw, Aluminum, 44.45mm Btw Mount Hole Ctrs, 10" Wide, 2" High, 7.95mm Groove, 3/8" Fastener TG10-8MDP - 50484633
Brand: Abbott Workholding- SKU:
- 50484633
- ID:
- 450026
$291.55
Abbott Workholding 8" Max Chuck Capacity, Tongue & Groove Interface, Round Soft Lathe Chuck Jaw 3 Jaw, Aluminum, 44.45mm Btw Mount Hole Ctrs, 10" Wide, 2" High, 7.95mm Groove, 3/8" Fastener
Manufacturer Part #: TG10-8MDP
S/N: 50484633
UNSPSC: 31162902
(Minimum Order Quantity=1, Package Quantity=1)
Specifications:
| Jaw Shape | Round |
| Jaw Interface Type | Tongue & Groove |
| Material | Aluminum |
| Maximum Compatible Chuck Diameter (mm) | 8.00 |
| Maximum Compatible Chuck Diameter (Decimal Inch) | 8.0000 |
| Minimum Compatible Chuck Diameter (Decimal Inch) | 8.0000 |
| Distance Between Mount Hole Centers (Decimal Inch) | 1.7500 |
| Distance Between Mount Hole Centers (mm) | 44.45 |
| Tongue Width (Decimal Inch) | 0.5000 |
| Tongue Width (mm) | 12.70 |
| Fastener Size (Decimal Inch) | 0.3750 |
| Slot Width | 7.90 |
| Slot Width (Decimal Inch) | 0.3130 |
| Groove Width (mm) | 7.95 |
| Groove Width (Decimal Inch) | 0.3130 |
| Overall Height (Decimal Inch) | 2.0000 |
| Overall Height (Mm - 5 Decimals) | 50.80 |
| Material Grade | 6061 |
| Overall Width/Diameter (Decimal Inch) | 10.0000 |
| Overall Width/Diameter (Inch) | 10 |
| Number Of Jaws | 3 |
