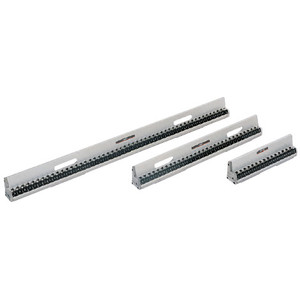

Mitutoyo High Accuracy Check Master HMC-H, Steel Inch - 515-733

Mitutoyo High Accuracy Check Master HMC-H, Steel Inch

High Accuracy Check Master HMC-H Series 515

Features:

• Designed to check the accuracy of table movements of machine tools and calibrate CMMs
• Permanently wrung stack of gage blocks is housed in a rigid frame
• Can be used in both vertical and horizontal orientation
• Fitted wooden case supplied
• Each measuring block is made of zirconia based ceramic that requires no anti-corrosion treatment for measuring faces
• Free from deterioration and dimensional changes over time

Technical Data:

• Block pitch accuracy:
     ±1.2μm (0 < R ≤☐310mm)
     ±1.8μm (310 < R ≤☐610mm)
     ±2.5μm (610 < R ≤☐1010mm)
     ±4.0μm (1010 < R ≤☐1510mm)
• Parallelism of blocks:
     1.0μm (0 < R ≤☐450mm)
     1.5μm (450 < R ≤☐1010mm
     2.0μm (1010 < R ≤☐1510mm)
• Provided with inspection certificate.

Optional Accessories:

• 601167: Supporting base for vertical operation
    (*supplied as a standard for 515-523 and 515-513)
• Dimensions:
    14.2"(W) x 8.7"(D) x 8.3"(H)
    360mm(W) x 220mm(D) x 210mm(H)
• Mass: 3kg

Specifications:

See all Mitutoyo High Accuracy Check Masters HMC-H, Steel Inch/Metric
