Mitutoyo High Accuracy Check Master HMC-H, Steel Metric - 515-742

Brand:   Mitutoyo
SKU:
515-742
ID:
103021
Type Metric
Range 0 - 600mm
$4,100.00
Current Stock:
Adding to cart… The item has been added

Mitutoyo

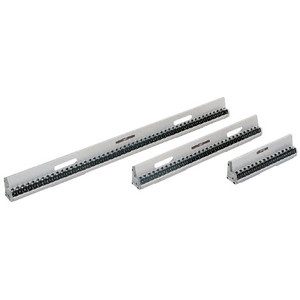

Mitutoyo High Accuracy Check Master HMC-H, Steel Metric


High Accuracy Check Master HMC-H Series 515


Features:

  • Designed to check the accuracy of table movements of machine tools and calibrate CMMs
  • Permanently wrung stack of gage blocks is housed in a rigid frame
  • Can be used in both vertical and horizontal orientation
  • Fitted wooden case supplied
  • Each measuring block is made of zirconia based ceramic that requires no anti-corrosion treatment for measuring faces
  • Free from deterioration and dimensional changes over time


Technical Data:

  • Block pitch accuracy:
       ±1.2μm (0 < R ≤☐310mm)
       ±1.8μm (310 < R ≤☐610mm)
       ±2.5μm (610 < R ≤☐1010mm)
       ±4.0μm (1010 < R ≤☐1510mm)
  • Parallelism of blocks:
       1.0μm (0 < R ≤☐450mm)
       1.5μm (450 < R ≤☐1010mm
       2.0μm (1010 < R ≤☐1510mm)
  • Provided with inspection certificate.


Optional Accessories:

  • 601167: Supporting base for vertical operation
      (*supplied as a standard for 515-523 and 515-513)
  • Dimensions:
      14.2"(W) x 8.7"(D) x 8.3"(H)
      360mm(W) x 220mm(D) x 210mm(H)
  • Mass: 3kg


Specifications:

Steel - METRIC
Model No. 515-742
Range 0 - 600mm
Block Pitch Accuracy up to 300mm 1.2um
Block Pitch Accuracy 300-600mm 1.8um
Block Pitch Accuracy 600-1000mm -
Block Pitch Accuracy 1000-1500mm -
Length 631mm
Parallelism 1.5um
Weight 7.2 kg
