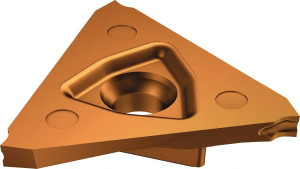

Sandvik Coromant N123U302000001-CM 1125 Carbide Cutoff Insert TiAlN Finish, 0° Neutral Lead Angle, Neutral Insert, 2mm Cutting Width, 0.1mm Corner Radius, Series CoroCut 3 5736629 - 52078409
Brand: Sandvik Coromant- SKU:
- 52078409
- ID:
- 647714
$48.07
Sandvik Coromant N123U302000001-CM 1125 Carbide Cutoff Insert TiAlN Finish, 0° Neutral Lead Angle, Neutral Insert, 2mm Cutting Width, 0.1mm Corner Radius, Series CoroCut 3
Manufacturer Part #: 5736629
S/N: 52078409
UNSPSC: 23242105
(Minimum Order Quantity=1, Package Quantity=1)
Specifications:
| Insert Style | N123U3 |
| Insert Size Code | U |
| Insert Material | Solid Carbide |
| Manufacturer Grade | 1125 |
| Cutting Width (Decimal Inch) | 0.0787 |
| Cutting Width (mm) | 2.00 |
| Insert Holding Method | Clamp |
| Lead Angle Direction | Neutral |
| Insert Hand | Neutral |
| Lead Angle | 0 |
| Relief Angle | 7.00 |
| Corner Radius (mm) | 0.10 |
| Corner Radius (Decimal Inch) | 0.0039 |
| Chipbreaker | CM |
| Series | CoroCut 3 |
| Coating Process | PVD |
| Overall Length (mm) | 11.10 |
| Overall Length (Decimal Inch) | 0.4370 |
| Manufacturers Catalog Number | N123U3-0200-0001-CM 1125 |
| Maximum Depth of Cut (mm) | 6.40 |
| Insert Seat Size | U |
| Full Radius | No |
| Maximum Depth of Cut (Decimal Inch) | 0.2520 |
| Overall Width (Decimal Inch - 4 Decimals) | 0.0787 |
| Overall Width (mm) | 2.00 |
| Coating/Finish | TiAlN |
| UNSPSC Code | 23242105 |
