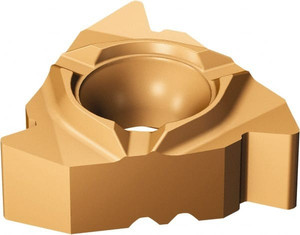

Sandvik Coromant 266RL22V381A0402E 1125 Carbide Laydown Threading Insert TiCrAlN/TiAlN Finish, RH Internal UN Thread, 4 TPI, 1/2" Inscribed Circle, 5.56mm Thick 5758087 - 52081312

Sandvik Coromant 266RL22V381A0402E 1125 Carbide Laydown Threading Insert TiCrAlN/TiAlN Finish, RH Internal UN Thread, 4 TPI, 1/2" Inscribed Circle, 5.56mm Thick 5758087 - 52081312

Brand:   Sandvik Coromant
SKU:
52081312
ID:
665417
callling
$103.12
Current Stock:
Adding to cart… The item has been added

Sandvik Coromant

Sandvik Coromant 266RL22V381A0402E 1125 Carbide Laydown Threading Insert TiCrAlN/TiAlN Finish, RH Internal UN Thread, 4 TPI, 1/2" Inscribed Circle, 5.56mm Thick

Manufacturer Part #: 5758087

S/N: 52081312

UNSPSC: 23291804

(Minimum Order Quantity=1, Package Quantity=1)

Specifications:

Insert Style266
Insert Size Code22
Insert MaterialSolid Carbide
Manufacturer Grade1125
Threads Per Inch4
Thread TypeInternal
Thread StandardUN
Insert HandRight Hand
Thickness (mm)5.56
Included Angle60
ChipbreakerA
SeriesCoroThread 266
Coating ProcessPVD
Inscribed Circle (mm)12.70
Inscribed Circle (Inch)1/2
Hole Diameter (Mm) ( - 0 Decimals)5.70
Hole Diameter (Decimal Inch)0.2244
Number of Teeth Per Side1
Manufacturers Catalog Number266RL-22V381A0402E 1125
Thickness (Decimal Inch - 4 Decimals)0.2190
Coating/FinishTiAlN, TiCrAlN
UNSPSC Code23291804
