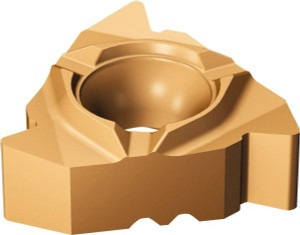

Sandvik Coromant 266RG22V501A0402E 1125 Carbide Laydown Threading Insert TiCrAlN/TiAlN Finish, RH External UN Thread, 4 TPI, 1/2" Inscribed Circle, 5.56mm Thick 5758033 - 52081437

Sandvik Coromant 266RG22V501A0402E 1125 Carbide Laydown Threading Insert TiCrAlN/TiAlN Finish, RH External UN Thread, 4 TPI, 1/2" Inscribed Circle, 5.56mm Thick 5758033 - 52081437

Brand:   Sandvik Coromant
SKU:
52081437
ID:
665424
callling
$97.87
Current Stock:
Adding to cart… The item has been added

Sandvik Coromant

Sandvik Coromant 266RG22V501A0402E 1125 Carbide Laydown Threading Insert TiCrAlN/TiAlN Finish, RH External UN Thread, 4 TPI, 1/2" Inscribed Circle, 5.56mm Thick

Manufacturer Part #: 5758033

S/N: 52081437

UNSPSC: 23291804

(Minimum Order Quantity=1, Package Quantity=1)

Specifications:

Insert Style266
Insert Size Code22
Insert MaterialSolid Carbide
Manufacturer Grade1125
Threads Per Inch4
Thread TypeExternal
Thread StandardUN
Insert HandRight Hand
Thickness (mm)5.56
Included Angle60
ChipbreakerA
SeriesCoroThread 266
Coating ProcessPVD
Inscribed Circle (mm)12.70
Inscribed Circle (Inch)1/2
Hole Diameter (Mm) ( - 0 Decimals)5.70
Hole Diameter (Decimal Inch)0.2244
Number of Teeth Per Side1
Manufacturers Catalog Number266RG-22V501A0402E 1125
Thickness (Decimal Inch - 4 Decimals)0.2190
Coating/FinishTiAlN, TiCrAlN
UNSPSC Code23291804
