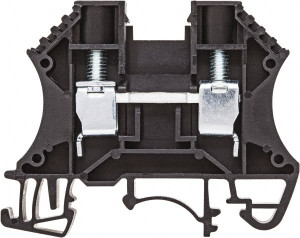

Bussmann 600 Volt (UL), 630 Volt (IEC), 32 (IEC) Amp, 35 (UL) Amp, DIN Rail Mount, Passthrough Terminal Block Zinc Plated Steel, 22 to 10 AWG Compatibility, 2 Inch High x 58.9mm Deep DP35-LK - 52665833
Brand: Bussmann- SKU:
- 52665833
- ID:
- 591154
$5.07
Bussmann 600 Volt (UL), 630 Volt (IEC), 32 (IEC) Amp, 35 (UL) Amp, DIN Rail Mount, Passthrough Terminal Block Zinc Plated Steel, 22 to 10 AWG Compatibility, 2 Inch High x 58.9mm Deep
Manufacturer Part #: DP35-LK
S/N: 52665833
UNSPSC: 39121410
UPC: 051712364102
(Minimum Order Quantity=50)
(Please order in multiples of 50)
Specifications:
| Block Type | Passthrough |
| Mounting Type | DIN Rail Mount |
| Voltage | 600 V (UL), 630 V (IEC) |
| Amperage | 32 (IEC), 35 (UL) |
| Number of Rows | 2 |
| Maximum Compatible Wire Size (AWG) | 10 |
| Maximum Compatible Wire Size (sq mm) | 4 |
| Minimum Compatible Wire Size (AWG) | 22 |
| Minimum Compatible Wire Size (sq mm) | 1/2 |
| Contact Material | Zinc-plated Steel |
| Block Color | Black |
| Overall Height (Decimal Inch) | 2 |
| Overall Height (mm) | 47.60 |
| Overall Depth (mm) | 58.90 |
| Overall Length (Decimal Inch) | 2.4000 |
| Overall Width (mm) | 6.10 |
| Standards Met | cRUus, IEC 60947-7 Compliant, UL Compliant 1059 |
