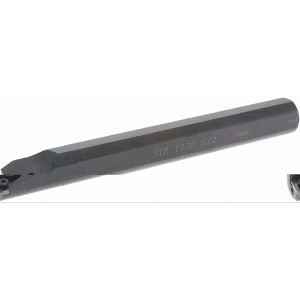

Hertel 10" OAL Right Hand Internal Indexable Threading Toolholder 1-1/4" Shank, Uses 22IR Inserts, HSI Toolholder, Series HSIR H08700320 - 53438750
Brand: Hertel- SKU:
- 53438750
- ID:
- 683429
$192.03
Hertel 10" OAL Right Hand Internal Indexable Threading Toolholder 1-1/4" Shank, Uses 22IR Inserts, HSI Toolholder, Series HSIR
Manufacturer Part #: H08700320
S/N: 53438750
UNSPSC: 23291800
(Minimum Order Quantity=1, Package Quantity=1)
Specifications:
| Thread Type | Internal |
| Hand of Holder | Right Hand |
| Shank Width/Diameter (Decimal Inch) | 1.2500 |
| Shank Width/Diameter (Inch) | 1-1/4 |
| Toolholder Style | HSI |
| Insert Compatibility | 22IR |
| Insert Holding Method | Screw |
| Overall Length (Inch) | 10 |
| Overall Length (Decimal Inch) | 10.0000 |
| Minimum Bore Diameter (Decimal Inch) | 1.5000 |
| Multi-use Tool | No |
| Back of Bar to Cutting Edge (Decimal Inch) | 1.5000 |
| Center to Cutting Edge (Decimal Inch) | 0.8500 |
| Insert Inscribed Circle (Inch) | 1/2 |
| Neck Diameter (Decimal Inch) | 1.2500 |
| Style | HSIR-1250-10-22 |
| Coolant Through | No |
| F -In-- | 0.8500 |
| Series | HSIR |
