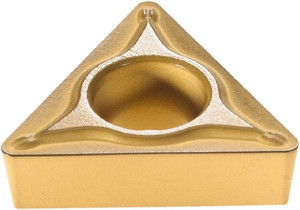

Sumitomo TCMT32.52ESU AC820P Carbide Turning Insert Al2O3 Finish, 3/8" Inscribed Circle, 1/32" Corner Radius, 60° Triangle 19RJBPU - 53985198
Brand: Sumitomo- SKU:
- 53985198
- ID:
- 677345
$18.00
Sumitomo TCMT32.52ESU AC820P Carbide Turning Insert Al2O3 Finish, 3/8" Inscribed Circle, 1/32" Corner Radius, 60° Triangle
Manufacturer Part #: 19RJBPU
S/N: 53985198
UNSPSC: 23242105
(Minimum Order Quantity=1, Package Quantity=1)
Specifications:
| Relief Angle | 7 |
| Insert Style | TCMT |
| Corner Radius (Inch) | 1/32 |
| Corner Radius (Decimal Inch) | 0.0313 |
| Included Angle | 60.0 |
| Manufacturer Grade | AC820P |
| Coating/Finish | Al2O3 |
| Insert Hand | Neutral |
| Insert Thickness (Inch) | 5/32 |
| Insert Thickness (Decimal Inch) | 0.1563 |
| Series | TC |
| Inscribed Circle (Inch) | 3/8 |
| Inscribed Circle (Decimal Inch) | 0.3750 |
| Insert Material | Solid Carbide |
| Insert Shape | Triangle |
| Insert Shape Code | T |
| Hole Diameter (Decimal Inch) | 0.1693 |
| Insert Holding Method | Screw |
| Clearance Code | C |
| Tolerance Code | M |
| Coating Process | CVD |
| Rake | Positive |
| Insert Length (Decimal Inch) | 0.6496 |
| Secondary Workpiece Material | Steel |
| Secondary Workpiece Material Code | P |
| Ansi Code | TCMT32.52ESU |
| Iso Code | TCMT16T308N-SU |
| Standards | ANSI, ISO 13399 |
| Chip Breaker | ESU |
| Rake Angle | 8 |
| Insert Size Code | 32.52 |
