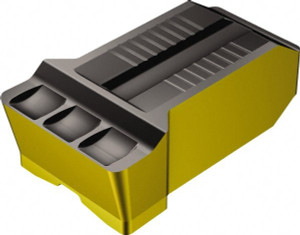

Sandvik Coromant N123R115000010-GR 4325 Carbide Grooving Insert TiCN/Al2O3/TiN Finish, Neutral, 15mm Cutting Width, Series CoroCut 1-2 6532107 - 54731328
Brand: Sandvik Coromant- SKU:
- 54731328
- ID:
- 651440
$61.30
Sandvik Coromant N123R115000010-GR 4325 Carbide Grooving Insert TiCN/Al2O3/TiN Finish, Neutral, 15mm Cutting Width, Series CoroCut 1-2
Manufacturer Part #: 6532107
S/N: 54731328
UNSPSC: 23242105
(Minimum Order Quantity=1, Package Quantity=1)
Specifications:
| Insert Style | N123 |
| Cutting Width (Decimal Inch) | 0.5906 |
| Cutting Width (mm) | 15.00 |
| Insert Hand | Neutral |
| Insert Material | Solid Carbide |
| Manufacturer Grade | 4325 |
| Corner Radius (Decimal Inch) | 0.0472 |
| Corner Radius (mm) | 1.20 |
| Rake | Neutral |
| Insert Size | R |
| Cutting Height (mm) | 7.49 |
| Cutting Height (Decimal Inch) | 0.2949 |
| Multi-use Tool | Yes |
| Series | CoroCut 1-2 |
| Coating Process | MT-CVD |
| Rake Angle | 13.00 |
| Overall Length (Decimal Inch) | 1.0000 |
| Overall Length (Inch) | 1 |
| Iso Code | N123R1-1500-0010-GR 4325 |
| Maximum Corner Radius (Decimal Inch) | 0.0512 |
| Minimum Corner Radius (Decimal Inch) | 0.0433 |
| Manufacturers Catalog Number | N123R1-1500-0010-GR 4325 |
| Insert Thickness (Decimal Inch) | 0.2949 |
| UNSPSC Code | 23242105 |
| Chip Breaker | GR |
| Insert Seat Size | R |
| Overall Width (mm) | 15.00 |
| Overall Width (Decimal Inch - 4 Decimals) | 0.5906 |
| Coating/Finish | TiCN/Al2O3/TiN |
