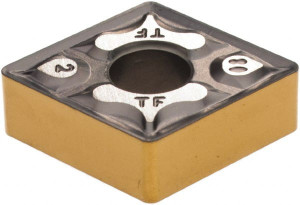

Iscar CNMG432-TF IC830 Carbide Turning Insert AlTiN/TiN Finish, 12.9mm Long, 1/2" Inscribed Circle, 1/32" Corner Radius, 80° Diamond, Series Isoturn 5507752 - 55231047
Brand: Iscar- SKU:
- 55231047
- ID:
- 670279
$19.58
Iscar CNMG432-TF IC830 Carbide Turning Insert AlTiN/TiN Finish, 12.9mm Long, 1/2" Inscribed Circle, 1/32" Corner Radius, 80° Diamond, Series Isoturn
Manufacturer Part #: 5507752
S/N: 55231047
UNSPSC: 23242105
(Minimum Order Quantity=1, Package Quantity=1)
Specifications:
| Relief Angle | 0 |
| Insert Style | CNMG |
| Corner Radius (Inch) | 1/32 |
| Corner Radius (Decimal Inch) | 0.0313 |
| Included Angle | 80.0 |
| Manufacturer Grade | IC830 |
| Coating/Finish | AlTiN, TiN |
| Insert Thickness (Inch) | 3/16 |
| Insert Thickness (Decimal Inch) | 0.1875 |
| Series | Isoturn |
| Inscribed Circle (Inch) | 1/2 |
| Inscribed Circle (Decimal Inch) | 0.5000 |
| Insert Material | Solid Carbide |
| Insert Shape | Diamond |
| Insert Shape Code | C |
| Single Or Double End | Double |
| Maximum Depth of Cut (mm) | 3.99 |
| Maximum Depth of Cut (Decimal Inch) | 0.1570 |
| Insert Holding Method | Clamp, Pin |
| Clearance Code | N |
| Tolerance Code | M |
| Coating Process | PVD |
| Length Range (Decimal Inch) | 0.5000 - 0.6000 |
| Rake | Positive |
| Insert Length (mm) | 12.90 |
| Insert Length (Decimal Inch) | 0.5080 |
| Primary Workpiece Material Code | M, P, S |
| Iso Code | CNMG 432-TF |
| Standards | ISO 13399 |
| Chip Breaker | TF |
| Multi-Use Tool | Yes |
| Full Radius | No |
| Multi-Use Application | Facing |
| Insert Size Code | 432 |
