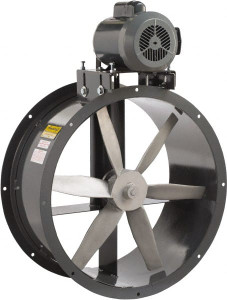

Americraft 1 hp 24" Explosion Proof Belt Drive Tube Axial Duct Fan 7,425 CFM at 0 Static Pressure, 1,725 RPM, Single Phase B24 1HP 1P XP - 55423438
Brand: Americraft Manufacturing, Inc.- SKU:
- 55423438
- ID:
- 472324
Americraft’s 1 hp 24" Explosion Proof Belt Drive Tube Axial Duct Fan (Model B-24-1, XP) delivers high-volume ventilation in hazardous environments. This belt-driven unit moves up to 7, 425 CFM at zero static pressure while running at 1, 725 RPM on a single-phase supply, making it well-suited for clean-dry air applications in demanding industrial settings.
Manufacturer Part #: B24 1HP 1P XP
S/N: 55423438
UNSPSC: 40101604
(Minimum Order Quantity=1, Package Quantity=1)
Uses & Applications
- Designed to handle clean dry air up to 180°F.
- Ideally suited for removing fumes in paint spray booths.
- Effective for smoke removal in welding operations.
- Serves as a supply air source for air make-up systems.
- Compact belt-drive design suitable for industrial ductwork and ventilation applications.
Key Features & Benefits
- Long-life maintenance-free sealed-for-life fan bearings.
- Spark-resistant heavy-duty cast aluminum propellers.
- Adjustable motor base for proper belt tension and extended belt life.
- Pulleys are rugged cast iron or turned steel for durability.
- Motors are high-quality industrial-grade and available in single or three-phase—with explosion-proof configurations when required.
Technical Specifications
| Spec Name | Value |
| Type | Belt Drive |
| Horsepower | 1 hp |
| Fan Size In | 24.0000 |
| RPM | 1725 |
| Phase | Single |
| Type of Enclosure | Explosion Proof |
| CFM Capacity @ 0 Static Pressure | 7425 |
| CFM Capacity @ 1/8 Static Pressure | 7000 |
| CFM Capacity @ 1/4 Static Pressure | 6350 |
| CFM Capacity @ 3/8 Static Pressure | 5850 |
| CFM Capacity @ 1/2 Static Pressure | 5000 |
| CFM Capacity @ 3/4 Static Pressure | 3300 |
| CFM Capacity @ 1 Static Pressure | 1775 |
Frequently Asked Questions (FAQs)
What is the horsepower and fan size of the model B-24-1, XP?
It is a 1 hp and 24 inch fan size.
What is the maximum CFM at zero static pressure and the RPM?
It moves up to 7, 425 CFM at zero static pressure while running at 1, 725 RPM on a single-phase supply.
What is the enclosure type and phase of this fan?
The fan has an Explosion Proof enclosure and operates on a single-phase supply.
What air conditions is this unit designed to handle?
Designed to handle clean dry air up to 180°F.
What are some typical uses and applications?
It is ideally suited for removing fumes in paint spray booths; effective for smoke removal in welding operations; and serves as a supply air source for air make-up systems.
What are some key features of the fan?
Long-life maintenance-free sealed-for-life fan bearings; spark-resistant heavy-duty cast aluminum propellers; adjustable motor base for proper belt tension and extended belt life; pulleys are rugged cast iron or turned steel; motors are high-quality industrial-grade and available in single or three-phase—with explosion-proof configurations when required.
What are the technical specifications?
Type — Belt Drive; Horsepower — 1 hp; Fan Size In — 24.0000; RPM — 1725; Phase — Single; Type of Enclosure — Explosion Proof; CFM Capacity @ 0 Static Pressure — 7425; CFM Capacity @ 1/8 Static Pressure — 7000; CFM Capacity @ 1/4 Static Pressure — 6350; CFM Capacity @ 3/8 Static Pressure — 5850; CFM Capacity @ 1/2 Static Pressure — 5000; CFM Capacity @ 3/4 Static Pressure — 3300; CFM Capacity @ 1 Static Pressure — 1775.
What related products are in the same family?
B-24-1 CA144 — 1 HP Belt Driven Tube Axial Duct Fan (same family) and BPR-24-1 CA196 — 1 HP Belt Driven Tube Axial Duct Fan variant.
