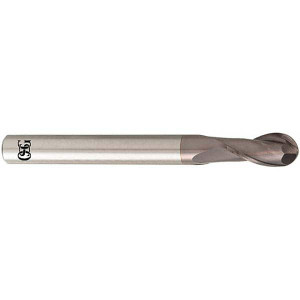

OSG 13mm Diam, 26mm LOC, 2 Flute Solid Carbide Ball End Mill TiAlN Finish, Single End, 110mm OAL, 16mm Shank Diam, Spiral Flute HP416-5118 - 55451405
Brand: OSG USA, INC.- SKU:
- 55451405
- ID:
- 610345
$187.10
OSG 13mm Diam, 26mm LOC, 2 Flute Solid Carbide Ball End Mill TiAlN Finish, Single End, 110mm OAL, 16mm Shank Diam, Spiral Flute
Manufacturer Part #: HP416-5118
S/N: 55451405
UNSPSC: 27112803
(Minimum Order Quantity=1, Package Quantity=1)
Specifications:
| Mill Diameter (Decimal Inch) | 0.5118 |
| Mill Diameter (mm) | 13.00mm |
| Number Of Flutes | 2 |
| End Mill Material | Solid Carbide |
| Length of Cut (mm) | 26.00mm |
| Coating/Finish | TiAlN |
| Extended Reach | No |
| Variable Helix | No |
| Variable Index | No |
| Helix Angle | 30 |
| Overall Length (mm) | 110.00mm |
| Chipbreaker | No |
| Undercutting | No |
| Length Of Cut Range (Decimal Inch) | 1.0000 to 1.5000 |
| Length Type | Stub |
| Helix Style | Medium |
| Material Removal Type | Roughing & Finishing |
| Shank Diameter (mm) | 16.00mm |
| Nose Radius (mm) | 6.50 |
| Neck Length (mm) | 0.00 |
| Reach Length (mm) | 26.00 |
| Mill Diameter Tolerance | +0.000/-0.038 mm |
| Shank Diameter Tolerance | h6 |
| Maximum Helix Angle | 30 |
| Minimum Helix Angle | 30 |
| Secondary Workpiece Material | Steel, Stainless Steel, Cast Iron, Superalloys & Titanium, Hard Material |
| Secondary Workpiece Material Code | P, M, K, S, H |
| Material Grade | Submicron |
| Flute Direction | Right Hand |
| Cutting Direction | Right Hand |
| Series | HP416 |
| Flute Type | Helical |
| UNSPSC Code | 27112803 |
| Additional Information | The Hy-Pro-Carb Is An Entire Line Up Of Performance End Mills Designed For Extend Tool Life. |
| Centercutting | Yes |
| Coating Classification | PVD |
| Single Or Double End | Single |
| Shank Type | Straight-Cylindrical |
| Pitch | Coarse |
| Coolant Through | No |
| Length Of Cut (Decimal Inch - 4 Decimals) | 1.0236 |
| Manufacturers Catalog Number | HP416-5118 |
| System Of Measurement | Metric |
