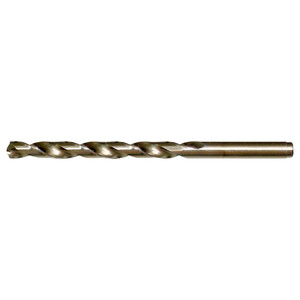

Cle-Line 7/32" 135° Cobalt Jobber Drill Gold Finish Finish, Right Hand Cut, Spiral Flute, Straight Shank, 3-3/4" OAL, Split Point C23355 - 57624595
Brand: Cle-Line- SKU:
- 57624595
- ID:
- 717438
$5.64
Cle-Line 7/32" 135° Cobalt Jobber Drill Gold Finish Finish, Right Hand Cut, Spiral Flute, Straight Shank, 3-3/4" OAL, Split Point
Manufacturer Part #: C23355
S/N: 57624595
UNSPSC: 23241634
(Minimum Order Quantity=12)
(Please order in multiples of 12)
Specifications:
| Drill Bit Size (Inch) | 7/32 |
| Drill Bit Size (Decimal Inch) | 0.2188 |
| Drill Bit Material | Cobalt |
| Drill Point Angle (Degrees) | 135 |
| Flute Type | Spiral |
| Cutting Direction | Right Hand |
| Point Type | Split |
| Primary Workpiece Material | Aluminum, Superalloy, Titanium |
| Coolant Through | No |
| Number of Flutes | 2 |
| Drill Bit Finish/Coating | Gold |
| Flute Length (Inch) | 2-1/2 |
| Primary Workpiece Material Code | H, K, N, P, S |
| Shank Diameter (Decimal Inch) | 0.2188 |
| Overall Length (mm) | 95.25 |
| Overall Length (Inch) | 3-3/4 |
| Overall Length (Decimal Inch) | 3.7500 |
| Spiral Type | Regular |
| Flute Length (mm) | 63.50 |
| Flute Length (Decimal Inch) | 2.5000 |
| Series | 1802 |
| Shank Diameter (Inch) | 7/32 |
| Shank Diameter (mm) | 5.56 |
| Shank Length (mm) | 31.75 |
| Shank Length (Decimal Inch) | 1.2500 |
| Drill Bit Diameter Tolerance | +0.0000 to -0.0007 in |
| Web Thinning | Web-Thinned |
| Web Configuration | Tapered |
| Shank Type | Straight-Cylindrical |
| Tool Performance | High Performance |
| Standards | ASME B94.11M |
| Drill Bit Grade | Heavy Duty |
| Drill Bit Size Range (Decimal Inch) | 0.2000 - 0.2500 |
| UNSPSC Code | 23241634 |
