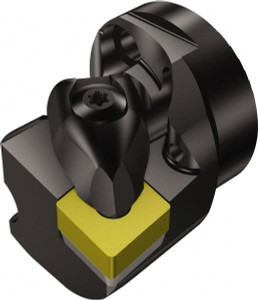

Sandvik Coromant Size 32 38mm Internal Right Hand Modular Turning & Profiling Cutting Unit Head 22mm Ctr to Cutting Edge, Uses CNMG 120408 Inserts, Through Coolant 5764270 - 58387150
Brand: Sandvik Coromant- SKU:
- 58387150
- ID:
- 687627
$688.50
Sandvik Coromant Size 32 38mm Internal Right Hand Modular Turning & Profiling Cutting Unit Head 22mm Ctr to Cutting Edge, Uses CNMG 120408 Inserts, Through Coolant
Manufacturer Part #: 5764270
S/N: 58387150
UNSPSC: 23242100
(Minimum Order Quantity=1, Package Quantity=1)
Specifications:
| System Size | 32 |
| Cutting Direction | Right Hand |
| Compatible Insert Style | CNMG 120408 |
| Internal or External | Internal |
| Insert Holding Method | Wedge |
| Center to Cutting Edge (mm) | 22.00 |
| Center to Cutting Edge (Decimal Inch) | 0.8661 |
| Series | T-Max P |
| Neck Diameter (mm) | 32.00 |
| Neck Diameter (Decimal Inch) | 1.2598 |
| Axial Rake Angle | -6.00 |
| Radial Rake Angle (Degrees) | -9 |
| Head Connection Size | 16 |
| Complete Insert Compatibility | CNMG 120408 |
| Coolant Through | Yes |
| Head Length Projection (Decimal Inch) | 1.4961 |
| Head Length Projection (mm) | 38.00 |
| Maximum Hole Depth (Decimal Inch) | 1.4961 |
| Maximum Hole Depth (mm) | 38.00 |
| Minimum Hole Diameter (Decimal Inch) | 1.5748 |
| Minimum Hole Diameter (mm) | 40.00 |
| UNSPSC Code | 23242100 |
