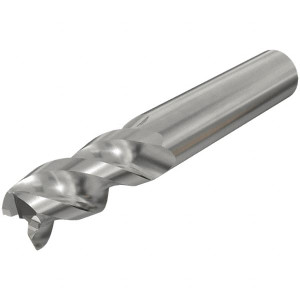

Iscar 8mm, 21.5mm LOC, 8mm Shank Diam, 63mm OAL, 3 Flute, Solid Carbide Square End Mill Single End, Uncoated, Spiral Flute, 45° Helix, Right Hand Cut, Right Hand Flute 5621806 - 58749862
Brand: Iscar- SKU:
- 58749862
- ID:
- 631818
$74.63
Iscar 8mm, 21.5mm LOC, 8mm Shank Diam, 63mm OAL, 3 Flute, Solid Carbide Square End Mill Single End, Uncoated, Spiral Flute, 45° Helix, Right Hand Cut, Right Hand Flute
Manufacturer Part #: 5621806
S/N: 58749862
UNSPSC: 27112803
(Minimum Order Quantity=1, Package Quantity=1)
Specifications:
| Mill Diameter (mm) | 8.00 |
| Mill Diameter (Decimal Inch) | 0.3150 |
| Number Of Flutes | 3 |
| End Mill Material | Solid Carbide |
| Length of Cut (Decimal Inch) | 0.8465 |
| Length of Cut (mm) | 21.50 |
| Shank Diameter (mm) | 8.00 |
| Overall Length (mm) | 63.00 |
| Centercutting | No |
| Cutting Direction | Right Hand |
| Flute Direction | Right Hand |
| Extended Reach | No |
| Helix Angle | 45 |
| Primary Workpiece Material | Non-Ferrous Metal |
| Primary Workpiece Material Code | N |
| Variable Helix | No |
| Variable Index | No |
| Chipbreaker | No |
| Flute Type | Spiral |
| Shank Type | Straight-Cylindrical |
| Material Grade | Fine Grain |
| Length Type | Regular |
| Length Of Cut Range (Decimal Inch) | 0.8000 - 1.0000 |
| Mill Diameter Tolerance | -0.025 to 0.047 mm |
| Shank Diameter Tolerance | 0.000/-0.009 mm |
