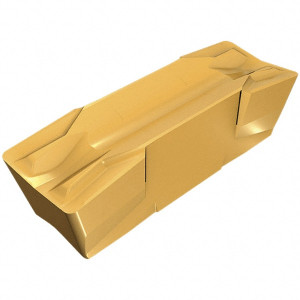

Iscar GIF10.00E0.80 IC8250 Carbide Grooving Insert TiCN/Al2O3/TiN Finish, Neutral, 10mm Cutting Width, 6mm Max Depth, Series Cut Grip 6404321 - 59387613
Brand: Iscar- SKU:
- 59387613
- ID:
- 648863
$110.42
Iscar GIF10.00E0.80 IC8250 Carbide Grooving Insert TiCN/Al2O3/TiN Finish, Neutral, 10mm Cutting Width, 6mm Max Depth, Series Cut Grip
Manufacturer Part #: 6404321
S/N: 59387613
UNSPSC: 23242105
(Minimum Order Quantity=10)
(Please order in multiples of 10)
Specifications:
| Insert Style | GIF |
| Insert Size Code | 1000E080 |
| Cutting Width (Decimal Inch) | 0.3937 |
| Cutting Width (mm) | 10.00 |
| Insert Hand | Neutral |
| Maximum Depth of Cut (Decimal Inch) | 0.2362 |
| Maximum Depth of Cut (mm) | 6.00 |
| Insert Material | Solid Carbide |
| Manufacturer Grade | IC8250 |
| Full Radius | No |
| Corner Radius (Decimal Inch) | 0.0315 |
| Corner Radius (mm) | 0.80 |
| Rake | Positive |
| Insert Holding Method | Clamp |
| Insert Size | 1000080 |
| Maximum Depth Of Cut Range (Decimal Inch) | 0.2000 to 0.3000 |
| Maximum Depth Of Cut Range (mm) | 5.00 to 10.00 |
| Multi-use Tool | Yes |
| Series | Cut Grip |
| Coating Process | PVD |
| Rake Angle | 7.00 |
| Overall Length (Decimal Inch) | 1.1811 |
| Overall Length (mm) | 30.00 |
| Primary Workpiece Material | Stainless Steel, Steel |
| Primary Workpiece Material Code | M, P |
| Iso Code | ISO 13399 |
| Standards | ISO 13399 |
| Chip Breaker | E |
| Coating/Finish | Al2O3 |
| Single Or Double End | Double |
