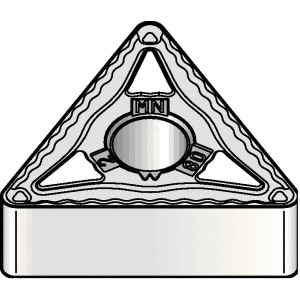

Kennametal TNMG331MN KCP25B Carbide Turning Insert TiOCN Finish, Neutral, 16.5mm Long, 3/8" Inscribed Circle, 1/64" Corner Radius, 60° Triangle, Series KENLOC 5698125 - 61283362
Brand: Kennametal- SKU:
- 61283362
- ID:
- 673205
$24.53
Kennametal TNMG331MN KCP25B Carbide Turning Insert TiOCN Finish, Neutral, 16.5mm Long, 3/8" Inscribed Circle, 1/64" Corner Radius, 60° Triangle, Series KENLOC
Manufacturer Part #: 5698125
S/N: 61283362
UNSPSC: 23242105
(Minimum Order Quantity=5)
(Please order in multiples of 5)
Specifications:
| Relief Angle | 0 |
| Insert Style | TNMG |
| Corner Radius (Inch) | 1/64 |
| Corner Radius (Decimal Inch) | 0.0156 |
| Included Angle | 60 |
| Manufacturer Grade | KCP25B |
| Coating/Finish | TiCN, Al2O3, TiOCN |
| Wiper Edge | No |
| Insert Hand | Neutral |
| Insert Thickness (Inch) | 3/16 |
| Insert Thickness (Decimal Inch) | 0.1875 |
| Series | KENLOC |
| Inscribed Circle (Inch) | 3/8 |
| Inscribed Circle (Decimal Inch) | 0.3750 |
| Insert Material | Carbide |
| Insert Shape | Triangle |
| Number Of Cutting Edges | 6 |
| Insert Shape Code | T |
| Hole Diameter (Decimal Inch) | 0.1500 |
| Hole Diameter (Mm) ( - 0 Decimals) | 3.81 |
| Maximum Depth of Cut (Decimal Inch) | 0.2163 |
| Insert Holding Method | Clamp, Pin |
| Clearance Code | N |
| Tolerance Code | M |
| Coating Process | MTCVD |
| Length Range (Decimal Inch) | 0.6000 - 0.6500 |
| Rake | Negative |
| Insert Length (mm) | 16.50 |
| Insert Length (Decimal Inch) | 0.6496 |
| Primary Workpiece Material | Steel, Cast Iron |
| Primary Workpiece Material Code | P, K |
| Iso Code | TNMG160404MN |
| Standards | ANSI, ISO |
| Manufacturers Catalog Number | 5698125 |
| Material Grade | C2, C3, C6, C7 |
| Proprietary Coating Designation | Multilayer Coating |
| Coating Classification | CVD |
| Chip Breaker | MN |
| Rake Angle | 0 |
| Cutting Edge Style | Chamfered & Honed |
| Industry Standard Number | TNMG331MN |
| Width (Decimal Inch - 4 Decimals) | 0.6496 |
| Multi-Use Tool | Yes |
| Full Radius | No |
| Multi-Use Application | Turning, Facing, Boring |
| UNSPSC Code | 23242105 |
| Insert Size Code | 331 |
