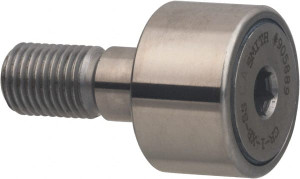

Accurate Bushing Co. 1-1/8" Roller Diam x 5/8" Width, 7/16" Stud Diam x 1" Length, Sealed Stud Cam Follower with Hex Stainless Steel, 1/2" Thread Length, 7/16-20 Thread, 1.63" OAL, 1,560 Lb Dynamic Cap CR-1-1/8-XB-SS - 62895040

Accurate Bushing Co. CR-1-1/8-XB-SS Sealed Stud Cam Follower with Hex is a stainless steel, corrosion-resistant cam follower designed for high-load, precision motion in automated and industrial applications. It features a 1-1/8" roller diameter, a .4375" stud diameter, a 1" stud length, and a 7/16-20 UNF threaded stud with a 1/2" thread length, all in a compact, sealed construction for reliable performance in tough environments. The unit is rated for a dynamic load of 1, 560 lb and offers a 1/4" hex drive and integrated lubrication options for long service life.

Manufacturer Part #: CR-1-1/8-XB-SS

S/N: 62895040

UNSPSC: 26111500

(Minimum Order Quantity=1, Package Quantity=1)

Uses & Applications

• Conveyor systems and material handling machinery
• Automated packaging and manufacturing lines
• Printing and textile equipment with precise linear motion
• Robotics and pick-and-place assemblies requiring reliable cam follower guidance
• Heavy-load cam-driven machinery and feeders

Key Features & Benefits

• Stainless steel, corrosion-resistant construction for demanding environments
• Sealed stud cam follower design with hex drive for secure mounting
• 1-1/8" (OD) roller diameter provides higher load-carrying capability
• 7/16-20 UNF thread with 1/2" thread length and 1/4" hex size for robust mounting
• Lubrication accessibility via 3/16" lube fitting and 3/32" oil hole with 1/4" oil-hole location

Technical Specifications

Frequently Asked Questions (FAQs)

What is the model name and material composition of the Sealed Stud Cam Follower with Hex?

It is the CR-1-1/8-XB-SS Sealed Stud Cam Follower with Hex, made of stainless steel and designed for corrosion resistance.

What are the roller diameter, stud diameter, and stud length of the CR-1-1/8-XB-SS?

The roller diameter is 1-1/8 inches, the stud diameter is 0.4375 inches, and the stud length is 1 inch.

What is the stud thread type and thread length for mounting?

It uses a 7/16-20 UNF threaded stud with a 1/2 inch thread length.

What is the hex drive size and how is lubrication provided?

The hex drive is 1/4 inch, and lubrication is accessible via a 3/16 inch lube fitting and a 3/32 inch oil hole with a 1/4 inch oil-hole location.

What is the basic dynamic load rating of this cam follower?

The basic dynamic rating is 1, 560 pounds.

What advantages does the stainless steel construction provide?

The stainless steel construction provides corrosion resistance for demanding environments.

What are the listed uses and applications for this cam follower?

Uses include conveyor systems and material handling machinery, automated packaging and manufacturing lines, printing and textile equipment with precise linear motion, robotics and pick-and-place assemblies, and heavy-load cam-driven machinery and feeders.

What are the roller O. D. and roller width specifications?

Roller O. D. is 1-1/8 inches and roller width is 0.625 inch.

What is the recommended bore and its tolerance?

The recommended bore is 0.4375 inches with a tolerance of +0.0005/-0.0000.

What related products are offered for this cam follower family?

Related products include CR-1-XB-SS, a stainless steel cam follower with a 1" roller O. D. (similar family, smaller roller), and CR-1-7/8-XB-SS, a stainless steel cam follower with a 1.875" roller O. D. (heavier-duty variant).
