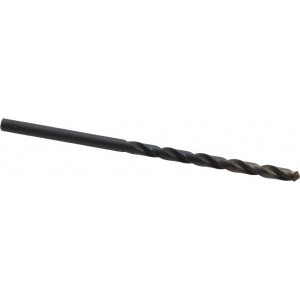

Cleveland Twist Drill 1/8" 118° High Speed Steel Jobber Drill Oxide Finish, Right Hand Cut, Spiral Flute, Straight Shank, 2-3/4" OAL, Standard Point C71008 - 63687081
Brand: Cleveland Twist Drill- SKU:
- 63687081
- ID:
- 717883
$3.22
Cleveland Twist Drill 1/8" 118° High Speed Steel Jobber Drill Oxide Finish, Right Hand Cut, Spiral Flute, Straight Shank, 2-3/4" OAL, Standard Point
Manufacturer Part #: C71008
S/N: 63687081
UNSPSC: 23241634
UPC: 697334710080
(Minimum Order Quantity=12)
(Please order in multiples of 12)
Specifications:
| Drill Bit Size (Inch) | 1/8 |
| Drill Bit Size (Decimal Inch) | 0.1250 |
| Drill Bit Material | High Speed Steel |
| Drill Point Angle (Degrees) | 118 |
| Flute Type | Spiral |
| Cutting Direction | Right Hand |
| Point Type | Standard |
| Coolant Through | No |
| Number of Flutes | 2 |
| Drill Bit Finish/Coating | Oxide |
| Flute Length (Inch) | 1-5/8 |
| Shank Diameter (Decimal Inch) | 0.1250 |
| Overall Length (mm) | 69.85 |
| Overall Length (Inch) | 2-3/4 |
| Overall Length (Decimal Inch) | 2.7500 |
| Spiral Type | Regular |
| Series | 2001G |
| Flute By Diameter Ratio | 4xD |
| Shank Diameter (Inch) | 1/8 |
| Shank Length (mm) | 28.57 |
| Shank Length (Decimal Inch) | 1.1250 |
| Drill Bit Diameter Tolerance | -0.0005 to 0.0000 in |
| Web Thinning | Web-Thinned |
| Web Configuration | Tapered |
| Shank Type | Straight-Cylindrical |
| Tool Performance | General Purpose |
| Standards | ASME B94.11M, DIN 338 |
| Drill Bit Grade | General Purpose |
| Drill Bit Size Range (Decimal Inch) | 0.1000 - 0.1500 |
| Specification Designation | ANSI |
| UNSPSC Code | 23241634 |
