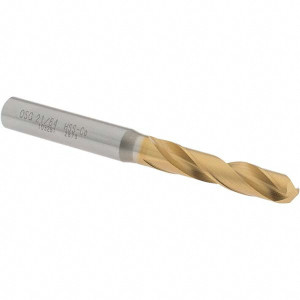

OSG 21/64" 130° Spiral Flute Cobalt Screw Machine Drill Bit TiN Finish, Right Hand Cut, 1-11/16" Flute Length, 3-1/2" OAL, Standard Point, Straight Shank 10328105 - 64183676
Brand: OSG USA, INC.- SKU:
- 64183676
- ID:
- 738969
$74.62
OSG 21/64" 130° Spiral Flute Cobalt Screw Machine Drill Bit TiN Finish, Right Hand Cut, 1-11/16" Flute Length, 3-1/2" OAL, Standard Point, Straight Shank
Manufacturer Part #: 10328105
S/N: 64183676
UNSPSC: 23241635
(Minimum Order Quantity=1, Package Quantity=1)
Specifications:
| Drill Bit Size (Inch) | 21/64 |
| Drill Bit Size (mm) | 8.33 |
| Drill Bit Size (Decimal Inch) | 0.3281 |
| Tool Material | Cobalt High Speed Steel |
| Cutting Direction | Right Hand |
| Coating/Finish | Coated |
| Number Of Flutes | 2 |
| Spiral Type | Regular |
| Flute Type | Spiral |
| Drill Point Angle | 130 |
| Coolant Through | No |
| Shank Type | Straight-Cylindrical |
| Point Type | Standard |
| Primary Workpiece Material | Steel, Alloy Steel |
| Overall Length (Inch) | 3-1/2 |
| Series | 1000 |
| Web Thinning | R-Thinned |
| Web Configuration | Tapered |
| Drill Length Type | Screw Machine |
| Shank Length (Inch) | 1-9/16 |
| Flute By Diameter Ratio | 3xD |
| Tool Performance | High Performance |
| Drill Bit Diameter Tolerance | +0 to -0.022 mm |
| Flute Length (Inch) | 1-11/16 |
| Flute Length (mm) | 42.00 |
| Drill Bit Grade | High Performance |
| Drill Bit Size Range (Decimal Inch) | 0.3000 to 0.3500 |
