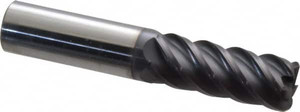

Accupro 5/8" Diam 5 Flute Solid Carbide 0.09" Corner Radius End Mill AlTiN Finish, 3-1/2" OAL, 1-5/8" LOC, 5/8" Shank Diam, 45° Helix, RH Cut, RH Flute, Centercutting 5456250090C11 - 65849069
Brand: Accupro- SKU:
- 65849069
- ID:
- 614242
$148.67
Accupro 5/8" Diam 5 Flute Solid Carbide 0.09" Corner Radius End Mill AlTiN Finish, 3-1/2" OAL, 1-5/8" LOC, 5/8" Shank Diam, 45° Helix, RH Cut, RH Flute, Centercutting
Manufacturer Part #: 5456250090C11
S/N: 65849069
UNSPSC: 27112803
(Minimum Order Quantity=1, Package Quantity=1)
Specifications:
| Mill Diameter (Inch) | 5/8 |
| Mill Diameter (Decimal Inch) | 0.6250 |
| Number Of Flutes | 5 |
| Length of Cut (Inch) | 1-5/8 |
| Single Or Double End | Single |
| End Mill Material | Solid Carbide |
| Coating/Finish | AlTiN |
| Overall Length (Inch) | 3-1/2 |
| Centercutting | Yes |
| Flute Direction | Right Hand |
| Corner Radius (Decimal Inch) | 0.0900 |
| Variable Helix | No |
| Cutting Direction | Right Hand |
| End Type | Corner Radius |
| Length Of Cut (Decimal Inch - 4 Decimals) | 1.6250 |
| Length Type | Regular |
| Flute Type | Spiral |
| Extended Reach | No |
| Shank Diameter (Inch) | 5/8 |
| Mill Diameter Tolerance | +0.000000/-0.002000 in |
| Shank Diameter Tolerance | +0.0001/-0.0004 in |
| UNSPSC Code | 27112803 |
| Material Grade | Micrograin |
