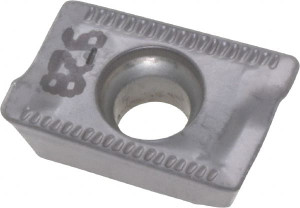

Iscar ADKT 1505 PDTR-76 Carbide Milling Insert TiAlN Finish, 0.5472" Long x 0.2217" Thick x 0.3756" Wide 5602363 - 67828665
Brand: Iscar- SKU:
- 67828665
- ID:
- 660406
$27.95
Iscar ADKT 1505 PDTR-76 Carbide Milling Insert TiAlN Finish, 0.5472" Long x 0.2217" Thick x 0.3756" Wide
Manufacturer Part #: 5602363
S/N: 67828665
UNSPSC: 23291601
(Minimum Order Quantity=1, Package Quantity=1)
Specifications:
| Insert Style | ADKT |
| Insert Size | 15 |
| Insert Material | Solid Carbide |
| Insert Shape | Parallelogram |
| Manufacturer Grade | IC928 |
| Corner Radius (Decimal Inch) | 0.0394 |
| Corner Radius (mm) | 1.00 |
| Number Of Cutting Edges | 2 |
| Thickness (Decimal Inch - 4 Decimals) | 0.2220 |
| Coating/Finish | TiAlN |
| Relief Angle | 15.00 |
| Maximum Depth of Cut (Decimal Inch) | 0.4720 |
| Maximum Depth of Cut (mm) | 12.00 |
| Insert Size Code | 1505 |
| Material Grade | C1, C2, C5, C6 |
| Inscribed Circle (Decimal Inch) | 0.3760 |
| Thickness Range (Decimal Inch) | 0.2200 to 0.2350 |
| Inscribed Circle Range (Decimal Inch) | 0.3500 to 0.4000 |
| Length Range (Decimal Inch) | 0.6000 to 0.6500 |
| Insert Hand | Right Hand |
| Series | HELIMILL |
| Coating Process | PVD |
| Hole Diameter (Decimal Inch) | 0.1100 |
| Cutting Edge Effective Length (Decimal Inch) | 0.5470 |
| Rake | Positive |
| Primary Workpiece Material | Steel, Stainless Steel, Superalloys & Titanium |
| Primary Workpiece Material Code | P, M, S |
| Ansi Code | ADKT 1505PDTR-76 IC928 |
| Iso Code | ADKT 1505PDTR-76 |
| Standards | ANSI, ISO 13399 |
| Cutting Edge Style | T-Land |
| Manufacturers Catalog Number | ADKT 1505PDTR-76 IC928 |
| Cutter Series Compatibility | ETS, FTS, ADK, E90 |
| Chip Breaker | 76 |
| Material Application | Steel, Stainless Steel, Superalloys & Titanium |
| UNSPSC Code | 23291601 |
| Insert Holding Method | Screw |
| Coating Classification | PVD |
| Single or Double Sided Insert | Single |
| Included Angle Degree | 85 |
| Width (Decimal Inch - 4 Decimals) | 0.3760 |
| Multi-Use Tool | Yes |
| Length (Decimal Inch - 4 Decimals) | 0.6200 |
