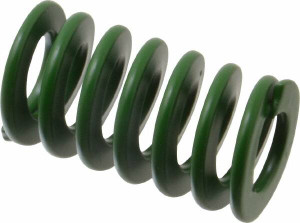

Associated Spring Raymond 25mm Hole Diam, 12.5mm Rod Diam, 1-3/4" Free Length, Green Die Spring 952.2 N Max Deflection, 18mm Max Deflection, Light Duty, Chromium Alloy Steel 203-507 - 67898734
Brand: Associated Spring Raymond- SKU:
- 67898734
- ID:
- 443830
$6.43
Associated Spring Raymond 25mm Hole Diam, 12.5mm Rod Diam, 1-3/4" Free Length, Green Die Spring 952.2 N Max Deflection, 18mm Max Deflection, Light Duty, Chromium Alloy Steel
Manufacturer Part #: 203-507
S/N: 67898734
UNSPSC: 23153000
(Minimum Order Quantity=1, Package Quantity=1)
Specifications:
| Hole Diameter (Mm) ( - 0 Decimals) | 25.00 | ||
| Free Length (mm) | 44.00 | ||
| Free Length (Inch) | 1-3/4 | ||
| Color | Green | ||
| Wire Shape | Trapezoidal | ||
| Material | Chromium Alloy Steel | ||
| Rod Diameter (mm) | 12.50 | ||
| Travel To Solid Load (mm) | 18.00 | ||
| Maximum Deflection Load (N) | 952.20 | ||
| Maximum Deflection (mm) | 18.00 | ||
| Spring Rate | 302.07 | ||
| Standards | ANAB Accredited, ISO 9001 | 2008 Certified, ISO/TS 16949 | 2009 Certi ed, TUV Rheinland Registered |
| ISO Number | 10243 |
