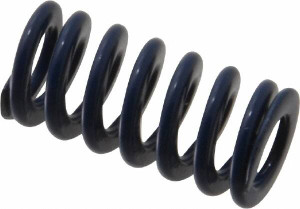

Associated Spring Raymond 12.5mm Hole Diam, 6.3mm Rod Diam, 1" Free Length, Blue Die Spring 285 N Max Deflection, 9.5mm Max Deflection, Medium Duty, Chromium Alloy Steel 204-204 - 67899443
Brand: Associated Spring Raymond- SKU:
- 67899443
- ID:
- 443901
$2.43
Associated Spring Raymond 12.5mm Hole Diam, 6.3mm Rod Diam, 1" Free Length, Blue Die Spring 285 N Max Deflection, 9.5mm Max Deflection, Medium Duty, Chromium Alloy Steel
Manufacturer Part #: 204-204
S/N: 67899443
UNSPSC: 23153000
(Minimum Order Quantity=1, Package Quantity=1)
Specifications:
| Hole Diameter (Mm) ( - 0 Decimals) | 12.50 | ||
| Free Length (mm) | 25.00 | ||
| Free Length (Inch) | 1 | ||
| Color | Blue | ||
| Wire Shape | Trapezoidal | ||
| Material | Chromium Alloy Steel | ||
| Rod Diameter (mm) | 6.30 | ||
| Travel To Solid Load (mm) | 9.50 | ||
| Maximum Deflection Load (N) | 285.00 | ||
| Maximum Deflection (mm) | 9.50 | ||
| Spring Rate | 171.30 | ||
| Standards | ANAB Accredited, ISO 9001 | 2008 Certified, ISO/TS 16949 | 2009 Certi ed, TUV Rheinland Registered |
| ISO Number | 10243 |
