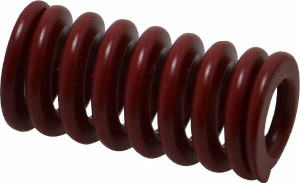

Associated Spring Raymond 16mm Hole Diam, 8mm Rod Diam, 1-1/4" Free Length, Red Die Spring 506.9 N Max Deflection, 9.6mm Max Deflection, Strong Duty, Chromium Alloy Steel 205-305 - 67900639
Brand: Associated Spring Raymond- SKU:
- 67900639
- ID:
- 444020
$3.55
Associated Spring Raymond 16mm Hole Diam, 8mm Rod Diam, 1-1/4" Free Length, Red Die Spring 506.9 N Max Deflection, 9.6mm Max Deflection, Strong Duty, Chromium Alloy Steel
Manufacturer Part #: 205-305
S/N: 67900639
UNSPSC: 23153000
(Minimum Order Quantity=1, Package Quantity=1)
Specifications:
| Hole Diameter (Mm) ( - 0 Decimals) | 16.00 | ||
| Free Length (mm) | 32.00 | ||
| Free Length (Inch) | 1-1/4 | ||
| Color | Red | ||
| Wire Shape | Trapezoidal | ||
| Material | Chromium Alloy Steel | ||
| Rod Diameter (mm) | 8.00 | ||
| Travel To Solid Load (mm) | 9.60 | ||
| Maximum Deflection Load (N) | 506.90 | ||
| Maximum Deflection (mm) | 9.60 | ||
| Spring Rate | 301.50 | ||
| Standards | ANAB Accredited, ISO 9001 | 2008 Certified, ISO/TS 16949 | 2009 Certi ed, TUV Rheinland Registered |
| ISO Number | 10243 |
