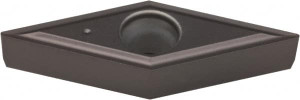

Kennametal VBGT3305LF KCU10 Carbide Turning Insert AlTiN Finish, 3/8" Inscribed Circle, 0.008" Corner Radius, 3/16" Thick, 35° Diamond 4045340 - 69259489
Brand: Kennametal- SKU:
- 69259489
- ID:
- 673033
$49.20
Kennametal VBGT3305LF KCU10 Carbide Turning Insert AlTiN Finish, 3/8" Inscribed Circle, 0.008" Corner Radius, 3/16" Thick, 35° Diamond
Manufacturer Part #: 4045340
S/N: 69259489
UNSPSC: 23242105
(Minimum Order Quantity=1, Package Quantity=1)
Specifications:
| Relief Angle | 5 |
| Insert Style | VBGT |
| Corner Radius (Inch) | 1/128 |
| Corner Radius (Decimal Inch) | 0.0079 |
| Included Angle | 35 |
| Manufacturer Grade | KCU10 |
| Coating/Finish | TiAlN |
| Wiper Edge | No |
| Insert Hand | Neutral |
| Insert Thickness (Inch) | 3/16 |
| Insert Thickness (Decimal Inch) | 0.1875 |
| Series | Screw-On |
| Inscribed Circle (Inch) | 3/8 |
| Inscribed Circle (Decimal Inch) | 0.3750 |
| Insert Material | Carbide |
| Insert Shape | Diamond |
| Number Of Cutting Edges | 2 |
| Insert Shape Code | V |
| Hole Diameter (Decimal Inch) | 0.1732 |
| Maximum Depth of Cut (Decimal Inch) | 0.4354 |
| Insert Holding Method | Screw |
| Width (Inch) | 3/8 |
| Clearance Code | B |
| Tolerance Code | G |
| Coating Process | PVD |
| Length Range (Decimal Inch) | 0.7000 - 10.0000 |
| Rake | Positive |
| Insert Length (Decimal Inch) | 1.3076 |
| Primary Workpiece Material | Steel, Stainless Steel, Superalloys & Titanium |
| Primary Workpiece Material Code | P, M, S |
| Iso Code | VBGT160402LF |
| Standards | ANSI, ISO |
| Manufacturers Catalog Number | 4045340 |
| Material Grade | C3, C4 |
| Coating Classification | PVD |
| Chip Breaker | LF |
| Rake Angle | 5 |
| Cutting Edge Style | Honed |
| Industry Standard Number | VBGT3305LF |
| Width (Decimal Inch - 4 Decimals) | 0.375 |
| Multi-Use Tool | Yes |
| Full Radius | No |
| Multi-Use Application | Turning, Facing, Boring, Back Turning, Back Boring |
| UNSPSC Code | 23242105 |
| Insert Size Code | 3305 |
