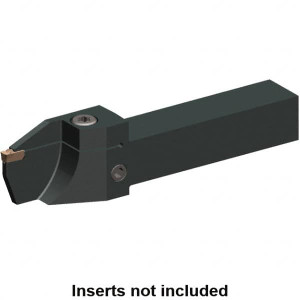

Kennametal 26mm Max Depth, 2mm to 2mm Width, External Right Hand Indexable Grooving/Cutoff Toolholder 6" OAL, 1" x 1" Shank, Uses EG0200M02P02 Inserts, EVSC-T Toolholder, Series Beyond Evolution 5980914 - 69577302
Brand: Kennametal- SKU:
- 69577302
- ID:
- 686021
$231.78
Kennametal 26mm Max Depth, 2mm to 2mm Width, External Right Hand Indexable Grooving/Cutoff Toolholder 6" OAL, 1" x 1" Shank, Uses EG0200M02P02 Inserts, EVSC-T Toolholder, Series Beyond Evolution
Manufacturer Part #: 5980914
S/N: 69577302
UNSPSC: 23153308
(Minimum Order Quantity=1, Package Quantity=1)
Specifications:
| Internal or External | External |
| Hand of Holder | Right Hand |
| Maximum Depth of Cut (Decimal Inch) | 1.0240 |
| Maximum Depth of Cut (mm) | 26.00 |
| Maximum Groove Width (Decimal Inch) | 0.0790 |
| Maximum Groove Width (mm) | 2.00 |
| Minimum Groove Width (Decimal Inch) | 0.0790 |
| Minimum Groove Width (mm) | 2.00 |
| Toolholder Style | EVSC-T |
| Insert Holding Method | Clamp |
| Insert Compatibility | EG0200M02P02 |
| Shank Height (mm) | 25.40 |
| Shank Height (Inch) | 1 |
| Shank Height (Decimal Inch) | 1.0000 |
| Shank Length (mm) | 110.40 |
| Shank Length (Decimal Inch) | 4.3460 |
| Shank Width/Diameter (Decimal Inch) | 1.0000 |
| Shank Width/Diameter (mm) | 25.40 |
| Shank Width/Diameter (Inch) | 1 |
| Series | Beyond Evolution |
| Overall Length (mm) | 152.40 |
| Back of Bar to Cutting Edge (Decimal Inch) | 6.0000 |
| Head Height (Decimal Inch) | 1.3540 |
| Head Height (mm) | 34.40 |
| Head Length (Decimal Inch) | 1.6540 |
| Head Length (mm) | 42.00 |
| Mount Size | 1010 |
| Complete Insert Compatibility | EG0200M02P02 |
| Insert Seat Size | 2.0 |
| Coolant Through | No |
| UNSPSC Code | 23153308 |
