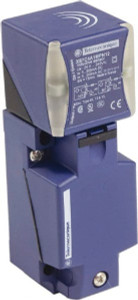

Telemecanique Sensors NPN, PNP, NO/NC, 15mm Detection, Rectangular, Inductive Proximity Sensor 2 Wires, IP65, IP67, IP69, 24 to 240 VAC @ 50/60 Hz, 24 to 240 VDC, 40mm Long x 117mm Wide XS7C4A1MPN12 - 69656965
Brand: Telemecanique Sensors- SKU:
- 69656965
- ID:
- 593945
$253.64
Telemecanique Sensors NPN, PNP, NO/NC, 15mm Detection, Rectangular, Inductive Proximity Sensor 2 Wires, IP65, IP67, IP69, 24 to 240 VAC @ 50/60 Hz, 24 to 240 VDC, 40mm Long x 117mm Wide
Manufacturer Part #: XS7C4A1MPN12
S/N: 69656965
UNSPSC: 39122230
(Minimum Order Quantity=1, Package Quantity=1)
Specifications:
| Sensor Type | Inductive |
| Body Shape | Rectangular |
| Sensor Operation Output Mode | NO |
| Output Type | NPN, PNP |
| Connector Type | Screw Clamp |
| Detection Distance (mm) | 15.00 |
| Overall Length (mm) | 40.00 |
| Overall Width (mm) | 117.00 |
| Ingress Protection Rating | IP65, IP67, IP69 |
| Maximum Load Capacity (mA) | 5 to 200, 5 to 300 |
| Overall Width/Diameter (mm) | 117 |
| Housing Material | Polybutylene Terephthalate |
| Resistance Features | Shock-Resistant, Vibration-Resistant |
| Standards | CCC, CSA, DIN 40050, EN 60068-2-27, IEC 60068-2-6, IEC 60529, RoHS Compliant, UL |
| Number Of Wires | 2 |
| Response Frequency (Hz) | 25, 50 |
