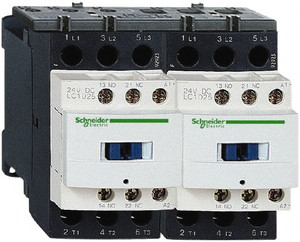

Schneider Electric 3 Pole, 24 Coil VDC, 9 Amp at 440 VAC, Reversible IEC Contactor 1 Phase hp: 0.5 at 115 VAC, 1 at 230/240 VAC, 3 Phase hp: 2 at 200/208 VAC, 2 at 230/240 VAC, 5 at 460/480 VAC, 7.5 at 575/600 VAC LC2D09BL - 69662971

Brand: Schneider Electric

SKU:: 69662971

ID:: 588160

$582.73

Current Stock:

Adding to cart… The item has been added

Schneider Electric 3 Pole, 24 Coil VDC, 9 Amp at 440 VAC, Reversible IEC Contactor 1 Phase hp: 0.5 at 115 VAC, 1 at 230/240 VAC, 3 Phase hp: 2 at 200/208 VAC, 2 at 230/240 VAC, 5 at 460/480 VAC, 7.5 at 575/600 VAC

Manufacturer Part #: LC2D09BL

S/N: 69662971

UNSPSC: 39121529

(Minimum Order Quantity=1, Package Quantity=1)

Specifications:

Number Of Poles	3
Amperage	9 at 440Vac
Action	Reversible
Coil Voltage	24Vdc
Auxiliary Contact Configuration	NC, NO
Reversible	Yes
Overall Height (Mm - 5 Decimals)	77.00
Overall Width (mm)	90.00
Overall Depth (Mm)	95.00
Standards	Bureau Veritas, CCC, CSA, CSA C22.2 No. 14, DNV, EN/IEC 60947-4-1, EN/IEC 60947-5-1, GL, GOST, LROS, RINA, RoHS Compliant, UL 508, UL Listed

WARNING: This Product Can Expose You To Materials And/Or Chemicals Which Are Known To The State Of California To Cause Cancer And/Or Reproductive Harm.

For more info, visit www.p65warnings.ca.gov.
