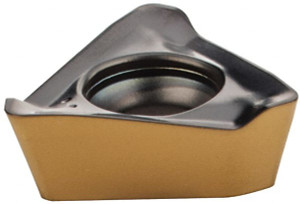

Iscar HM390TPKT1003PDR IC808 Carbide Milling Insert TiAlN/AlTiN/TiN Finish, 0.429" Long x 0.1516" Thick 5607513 - 70255823
Brand: Iscar- SKU:
- 70255823
- ID:
- 660421
$28.10
Iscar HM390TPKT1003PDR IC808 Carbide Milling Insert TiAlN/AlTiN/TiN Finish, 0.429" Long x 0.1516" Thick
Manufacturer Part #: 5607513
S/N: 70255823
UNSPSC: 23291601
(Minimum Order Quantity=1, Package Quantity=1)
Specifications:
| Insert Style | TPKT |
| Insert Size | 10 |
| Insert Material | Solid Carbide |
| Insert Shape | Triangle |
| Manufacturer Grade | IC808 |
| Corner Radius (Decimal Inch) | 0.0315 |
| Corner Radius (mm) | 0.80 |
| Number Of Cutting Edges | 3 |
| Thickness (Decimal Inch - 4 Decimals) | 0.1520 |
| Coating/Finish | TiAlN, AlTiN, TiN |
| Relief Angle | 11 |
| Maximum Depth of Cut (Decimal Inch) | 0.3150 |
| Maximum Depth of Cut (mm) | 8.00 |
| Insert Size Code | 1003 |
| Material Grade | Submicron |
| Inscribed Circle (Decimal Inch) | 0.2953 |
| Inscribed Circle (mm) | 7.50 |
| Thickness Range (Decimal Inch) | 0.1500 to 0.1750 |
| Corner Radius (Inch) | 1/32 |
| Inscribed Circle Range (Decimal Inch) | 0.2500 to 0.3000 |
| Length Range (Decimal Inch) | 0.4000 to 0.4500 |
| Insert Hand | Right Hand |
| Series | HELI3MILL |
| Coating Process | PVD |
| Cutting Edge Effective Length (Decimal Inch) | 0.3150 |
| Rake | Positive |
| Primary Workpiece Material | Steel, Stainless Steel, Cast Iron, Superalloys & Titanium, Hard Material |
| Primary Workpiece Material Code | P, M, K, S, H |
| Secondary Workpiece Material Code | H, S |
| Ansi Code | HM390 TPKT 1003PDR IC808 |
| Iso Code | HM390 TPKT 1003PDR |
| Standards | ANSI, ISO 13399 |
| Cutting Edge Style | Helical |
| Manufacturers Catalog Number | HM390 TPKT 1003PDR IC808 |
| Cutter Series Compatibility | HM390-10 |
| Chip Breaker | PDR |
| Material Application | Steel, Stainless Steel, Cast Iron, Superalloys & Titanium, Hard Material |
| Insert Holding Method | Screw |
| Coating Classification | Sumotec PVD |
| Single or Double Sided Insert | Single |
| Included Angle Degree | 60 |
| Width (Decimal Inch - 4 Decimals) | 0.4290 |
| Multi-Use Tool | Yes |
| Length (Decimal Inch - 4 Decimals) | 0.4290 |
