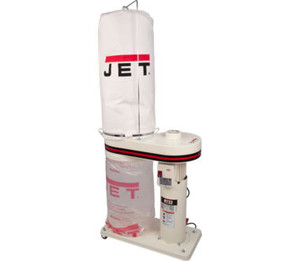

JET Model 650 dust collectors hook up to 1 to 3 machines at a time for optimum dust cleaning. Each 650 series dust collector comes equipped with a quick-install collection bag, single-stage design for economical and quiet operation, 4 casters for maneuverability and total portability, and permanently lubricated, fully enclosed, fan-cooled motors for continuous duty. An optional remote control is radio frequency so there is no need for line of sight to turn the machine on and off.
Features:
- Hook up one to three machines for optimum dust cleaning
- Quick-install collection bag makes emptying and re-attaching a snap
- Single-stage design for economical and quiet operation
- Includes four casters for maneuverability and total portability
- Permanently lubricated, totally enclosed, fan-cooled motors are rated for continuous-duty
Specifications:
| 1-HOSE CONNECTION DIAMETER (IN.) | 4 |
| AIR FLOW @ 4" (CFM) | 650 |
| STYLE (TYPE) | BAG |
| STATIC PRESSURE (WC.) | 6-1/2 |
| FILTER BAG/CANISTER LENGTH (IN.) | 31-1/2 |
| COLLECTION BAG CAPACITY (CU. FT.) | 2-1/10 |
| COLLECTION BAG LENGTH (IN.) | 21-1/2 |
| BAG DIAMETER (IN.) | 14 |
| IMPELLER MATERIAL | STEEL |
| SOUND RATING (DB.) | 65 - 70 |
| MOTOR POWER (HP) | 1 |
| MOTOR PHASE (PH) | 1 |
| MOTOR VOLTAGE (V.) | 115/230 |
| PREWIRED VOLTAGE (V.) | 115 |
| MOTOR AMPS | 11/5.5 |
