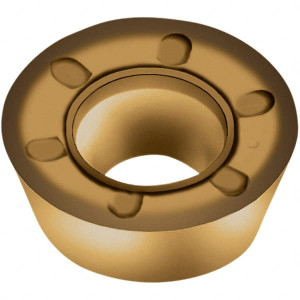

Walter Tools RDMT0803M0-D57 WKP35S Carbide Milling Insert TiCN/Al2O3/TiCN Finish, 0.1252" Thick 5918028 - 71374615
Brand: Walter Tools- SKU:
- 71374615
- ID:
- 663563
$18.87
Walter Tools RDMT0803M0-D57 WKP35S Carbide Milling Insert TiCN/Al2O3/TiCN Finish, 0.1252" Thick
Manufacturer Part #: 5918028
S/N: 71374615
UNSPSC: 23291601
(Minimum Order Quantity=10)
(Please order in multiples of 10)
Specifications:
| Insert Style | RDMT |
| Insert Size | 08 |
| Insert Material | Solid Carbide |
| Insert Shape | Round |
| Manufacturer Grade | WKP35S |
| Corner Radius (Decimal Inch) | 0.1575 |
| Number Of Cutting Edges | 4 |
| Thickness (Decimal Inch - 4 Decimals) | 0.1250 |
| Coating/Finish | TiCN, Al2O3, TiCN |
| Relief Angle | 15.00 |
| Maximum Depth of Cut (Decimal Inch) | 0.1575 |
| Insert Size Code | 0803M0 |
| Material Grade | P35, K35 |
| Thickness (Inch) | 1/8 |
| Inscribed Circle (Decimal Inch) | 0.3150 |
| Inscribed Circle (mm) | 8.00 |
| Thickness Range (Decimal Inch) | 0.1250 to 0.1500 |
| Inscribed Circle Range (Decimal Inch) | 0.3000 to 0.3500 |
| Length Range (Decimal Inch) | 0.0000 to 0.3200 |
| Insert Hand | Neutral |
| Series | RDMT |
| Coating Process | CVD |
| Hole Diameter (Mm) ( - 0 Decimals) | 0.13 |
| Hole Diameter (Decimal Inch) | 0.1339 |
| Rake | Positive |
| Primary Workpiece Material | Steel, Cast Iron |
| Primary Workpiece Material Code | P, K |
| Ansi Code | RDMT0803M0-D57 WKP35S |
| Iso Code | RDMT0803M0-D57 WKP35S |
| Standards | ANSI, ISO |
| Convex Radius (Decimal Inch) | 0.1575 |
| Rake Angle | 10 |
| Cutting Edge Style | Honed |
| Manufacturers Catalog Number | RDMT0803M0-D57 |
| Chip Breaker | D57 |
| Material Application | Steel, Cast Iron |
| UNSPSC Code | 23291601 |
| Insert Holding Method | Screw |
| Coating Classification | CVD |
| Single or Double Sided Insert | Single |
| Included Angle Degree | 360 |
| Width (Decimal Inch - 4 Decimals) | 0.3150 |
| Multi-Use Tool | Yes |
| Length (Decimal Inch - 4 Decimals) | 0.3150 |
