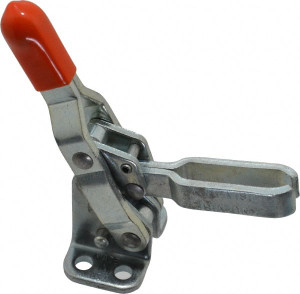

Knu-Vise 200 Lb Holding Capacity, Vertical Handle, Manual Hold Down Toggle Clamp 64° Handle Movement, 110° Bar Opening, U-Bar, Flanged Base, Carbon Steel V-220 - 71827000
Brand: Knu-Vise- SKU:
- 71827000
- ID:
- 441616
$14.43
Knu-Vise 200 Lb Holding Capacity, Vertical Handle, Manual Hold Down Toggle Clamp 64° Handle Movement, 110° Bar Opening, U-Bar, Flanged Base, Carbon Steel
Manufacturer Part #: V-220
S/N: 71827000
UNSPSC: 31162902
(Minimum Order Quantity=1, Package Quantity=1)
Specifications:
| Handle Orientation | Vertical |
| Bar Style | U-Bar |
| Base Style | Flanged |
| Bar End Type | Open |
| Holding Capacity (Lb.) | 200.00 |
| Length Distance Between Mount Holes | 1.06in |
| Length Distance Between Mount Holes (Inch) | 1.06 |
| Width Distance Between Mount Holes | 0.5in |
| Width Distance Between Mount Holes (Decimal Inch) | 0.5000 |
| Height Under Bar (Decimal Inch) | 0.9630 |
| Overall Length (Decimal Inch) | 2.6400 |
| Overall Height (Decimal Inch) | 3.6900 |
| Base Length (Inch) | 1 |
| Base Width (Inch) | 1.5600 |
| Handle Style | Straight |
| Material | Carbon Steel |
| Handle Material | Carbon Steel |
| Handle Color | Orange |
| Mounting Hole Diameter (Decimal Inch) | 0.2180 |
| Bar Opening (Degrees) | 110 |
| Handle Movement (Degrees) | 64 |
| Spindle Thread Size | 1/4-20 |
| Spindle Length | 1-5/8 |
| Spindle Travel (Inch) | 1.0000 |
| Bar Width (Decimal Inch) | 0.2600 |
| Bar Thickness (Decimal Inch) | 0.9600 |
| Front Of Base To Toggle Tip | 1.64in |
| Includes | (2) Flanged Washers, (2) Nuts, Spindle |
| Front of Base To Tip Of Toggle Bar (Decimal Inch) | 1.6400 |
| Number Of Mounting Holes | 4 |
