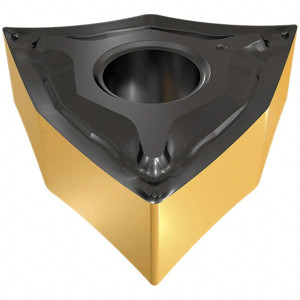

Iscar WNMG30NF IC8150 Carbide Turning Insert TiCN/Al2O3 Finish, 6.52mm Long, 3/8" Inscribed Circle, 0.008" Corner Radius, 5/32" Thick, 80° Trigon, Series Isoturn 5550514 - 72751225
Brand: Iscar- SKU:
- 72751225
- ID:
- 670843
$18.07
Iscar WNMG30NF IC8150 Carbide Turning Insert TiCN/Al2O3 Finish, 6.52mm Long, 3/8" Inscribed Circle, 0.008" Corner Radius, 5/32" Thick, 80° Trigon, Series Isoturn
Manufacturer Part #: 5550514
S/N: 72751225
UNSPSC: 23242105
(Minimum Order Quantity=10)
(Please order in multiples of 10)
Specifications:
| Relief Angle | 0 |
| Insert Style | WNMG |
| Corner Radius (Decimal Inch) | 0.0080 |
| Included Angle | 80.0 |
| Manufacturer Grade | IC8150 |
| Coating/Finish | TiCN, Al2O3 |
| Insert Thickness (Inch) | 5/32 |
| Insert Thickness (Decimal Inch) | 0.1560 |
| Series | Isoturn |
| Inscribed Circle (Inch) | 3/8 |
| Inscribed Circle (Decimal Inch) | 0.3750 |
| Insert Material | Solid Carbide |
| Insert Shape | Trigon |
| Insert Shape Code | W |
| Hole Diameter (Decimal Inch) | 0.1500 |
| Maximum Depth of Cut (mm) | 1.50 |
| Maximum Depth of Cut (Decimal Inch) | 0.0590 |
| Insert Holding Method | Clamp, Pin |
| Clearance Code | N |
| Tolerance Code | M |
| Coating Process | CVD |
| Length Range (Decimal Inch) | 0.0000 - 0.3000 |
| Rake | Positive |
| Insert Length (mm) | 6.52 |
| Insert Length (Decimal Inch) | 0.2567 |
| Primary Workpiece Material | P |
| Primary Workpiece Material Code | K, P |
| Secondary Workpiece Material | K |
| Secondary Workpiece Material Code | K |
| Iso Code | ISO 13399 |
| Standards | ISO 13399 |
| Stocking Category | D |
| Chip Breaker | NF |
| Insert Size Code | 3-0 |
