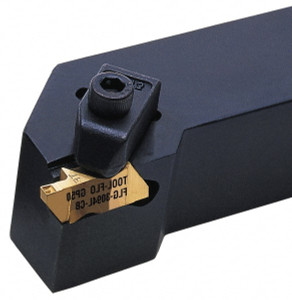

Tool-Flo 6" OAL Left Hand External Indexable Threading Toolholder 1-1/4" x 1-1/4" Shank, Uses FL 4L Inserts, FLS Toolholder, Series FLSL 93302020D - 75001339
Brand: Tool-Flo- SKU:
- 75001339
- ID:
- 683653
$177.48
Tool-Flo 6" OAL Left Hand External Indexable Threading Toolholder 1-1/4" x 1-1/4" Shank, Uses FL 4L Inserts, FLS Toolholder, Series FLSL
Manufacturer Part #: 93302020D
S/N: 75001339
UNSPSC: 23291800
(Minimum Order Quantity=1, Package Quantity=1)
Specifications:
| Thread Type | External |
| Hand of Holder | Left Hand |
| Shank Width/Diameter (Decimal Inch) | 1.2500 |
| Shank Width/Diameter (Inch) | 1-1/4 |
| Toolholder Style | FLS |
| Insert Compatibility | FL 4L |
| Coolant Entry Style Code | 0 - Without Coolant |
| Insert Holding Method | Clamp |
| Shank Height (Decimal Inch) | 1.2500 |
| Shank Height (Inch) | 1-1/4 |
| Shank Length (Inch) | 6 |
| Shank Length (Decimal Inch) | 6.0000 |
| Overall Length (Inch) | 6 |
| Overall Length (Decimal Inch) | 6.0000 |
| Multi-use Tool | Yes |
| Cutting Tool Application | Grooving, Threading |
| Maximum Depth of Cut (Decimal Inch) | 0.2900 |
| Back of Bar to Cutting Edge (Decimal Inch) | 1.5000 |
| Coolant Through | No |
| Series | FLSL |
