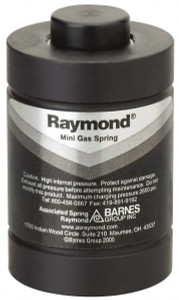

Associated Spring Raymond M6x1 Mt Hole, 0.71" Rod Diam, 1-1/2" Diam, 10mm Max Stroke, Nitrogen Gas Spring Cylinder 3.03" OAL, 3,595 Lb Full Stroke Spring Force, 2,175 psi Initial Charge CU 1000-010 - 75003798

Associated Spring Raymond M6x1 Mt Hole, 0.71" Rod Diam, 1-1/2" Diam, 10mm Max Stroke, Nitrogen Gas Spring Cylinder 3.03" OAL, 3,595 Lb Full Stroke Spring Force, 2,175 psi Initial Charge CU 1000-010 - 75003798

Brand:   Associated Spring Raymond
SKU:
75003798
ID:
585678
callling
$433.47
Current Stock:
Adding to cart… The item has been added

Associated Spring Raymond

Associated Spring Raymond M6x1 Mt Hole, 0.71" Rod Diam, 1-1/2" Diam, 10mm Max Stroke, Nitrogen Gas Spring Cylinder 3.03" OAL, 3,595 Lb Full Stroke Spring Force, 2,175 psi Initial Charge

Manufacturer Part #: CU 1000-010

S/N: 75003798

UNSPSC: 25172000

(Minimum Order Quantity=1, Package Quantity=1)

Specifications:

Diameter (Decimal Inch)1.5000
Stroke Length (Decimal Inch)0.3900
Stroke Length (mm)10.00
Maximum Stroke10.00
Initial Charge Pressure (psi)2175
Overall Length (Decimal Inch)3.0300
ColorBlack
Rod Diameter (Decimal Inch)0.7100
Mounting Hole Thread SizeM6 x 1
Spring Force Initial (lbf)2380
Spring Force Full Stroke (lbf)3595
Maximum Stroke (Decimal Inch)0.3930
Maximum Operating Temperature C80
Maximum Operating Temperature F176
Minimum Operating Temperature F0
Minimum Operating Temperature C0
