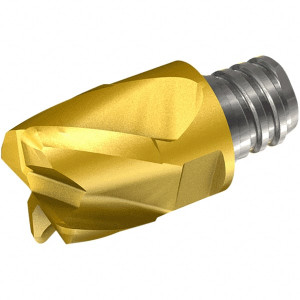

Iscar MMEC500A37R030-4T08 Carbide End Mill Tip Insert TiAlN/TiN Finish, 4 Flutes, 1/2" Diam, 0.374" Depth, Series Multimaster 5621480 - 75101055
Brand: Iscar- SKU:
- 75101055
- ID:
- 663802
$137.73
Iscar MMEC500A37R030-4T08 Carbide End Mill Tip Insert TiAlN/TiN Finish, 4 Flutes, 1/2" Diam, 0.374" Depth, Series Multimaster
Manufacturer Part #: 5621480
S/N: 75101055
UNSPSC: 23291601
(Minimum Order Quantity=2)
(Please order in multiples of 2)
Specifications:
| Milling Tip Type | Corner Radius |
| Milling Tip Style | MM EC-4 |
| Maximum Depth of Cut (Decimal Inch) | 0.3740 |
| Tool Material | Carbide |
| Manufacturer Grade | IC908 |
| Insert Hand | Right Hand |
| Chipbreaker | None |
| Series | MM EC-4 |
| Coating Process | PVD |
| Corner Radius (Decimal Inch) | 0.0300 |
| Cutting Width (Decimal Inch) | 0.5000in |
| Functional Length (Decimal Inch) | 0.6500 |
| Primary Workpiece Material | Steel, Stainless Steel, Cast Iron, Non-Ferrous Metal, Superalloys & Titanium, Hard Material |
| Primary Workpiece Material Code | P, M, K, N, S, H |
| Standards | ANSI |
| Milling Tip Full Description | MM EC.500A37R030-4T08 |
| Lead Angle | 90 |
| Manufacturers Catalog Number | 5621480 |
| Chamfer Angle | 0degree |
| Overall Length (Decimal Inch) | 0.6500in |
| Insert Size | .500A37R030 |
| Helix Angle | 30 |
| Coolant Through | No |
| Material Grade | Sub Micrograin |
| Included Angle Degree | 90 |
| Coating/Finish | TiAlN |
| Length Of Cut (Decimal Inch - 4 Decimals) | 0.3740in |
| UNSPSC Code | 23291601 |
| Number Of Flutes | 4 |
| Extension From Holder (Inch) | 0.6500 |
