Tool-Flo TNMC 32 NGR W.094 GP50 Carbide Grooving Insert TiN Finish, RH, 2.39mm Cutting Width, 0.15" Max Depth R0909400N4C - 75641605

Tool-Flo TNMC 32 NGR W.094 GP50 Carbide Grooving Insert TiN Finish, RH, 2.39mm Cutting Width, 0.15" Max Depth R0909400N4C - 75641605

Brand:   Tool-Flo
SKU:
75641605
ID:
651941
callling
$24.53
Current Stock:
Minimum Purchase:
10 units
Adding to cart… The item has been added

Tool-Flo

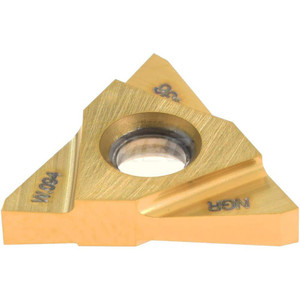

Tool-Flo TNMC 32 NGR W.094 GP50 Carbide Grooving Insert TiN Finish, RH, 2.39mm Cutting Width, 0.15" Max Depth

Manufacturer Part #: R0909400N4C

S/N: 75641605

UNSPSC: 23242105

(Minimum Order Quantity=10)

(Please order in multiples of 10)

Specifications:

Insert StyleTNMC
Insert Size Code32NGRW094
Cutting Width (Decimal Inch)0.0940
Cutting Width (mm)2.39
Insert HandRight Hand
Maximum Depth of Cut (Decimal Inch)0.1500
Insert MaterialSolid Carbide
Manufacturer GradeGP50
Full RadiusNo
RakePositive
Insert Size32
Material GradeC5, C6
Maximum Depth Of Cut Range (Decimal Inch)0.1500 to 0.2000
Multi-use ToolNo
SeriesOn-Edge
Coating ProcessPVD
Rake Angle2.00
Secondary Workpiece MaterialSteel
Iso CodeTNMC 32 NGR W.094
Inscribed Circle (Decimal Inch)0.3750
Gage Diameter (Inch)3/8
Overall Width (Decimal Inch - 4 Decimals)0.1270
Coating/FinishTiN
