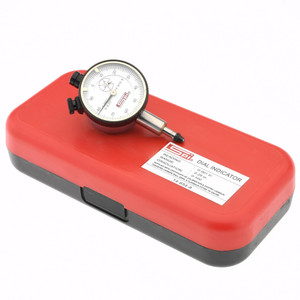

SPI Dial Drop Indicator: 0.25" Range, 1-100 Dial Reading, 0.001" Graduation, 1-1/2" Dial Dia 0.1" per Revolution, Flat & Lug Back, Revolution Counter, Flat and Lug Back & Tolerance Pointers 14-654-8 - 75887414
Brand: SPI Swiss Precision Instruments- SKU:
- 75887414
- ID:
- 794104
$83.57
SPI Dial Drop Indicator: 0.25" Range, 1-100 Dial Reading, 0.001" Graduation, 1-1/2" Dial Dia 0.1" per Revolution, Flat & Lug Back, Revolution Counter, Includes Certificate of Calibration Traceable to NPL, Flat and Lug Back & Tolerance Pointers
Manufacturer Part #: 14-654-8
S/N: 75887414
(Minimum Order Quantity=1, Package Quantity=1)
Specifications:
| Back Type | Flat, Lug |
| Maximum Measurement (Decimal Inch) | 0.2500 |
| Maximum Measurement (Inch) | 1/4 |
| Dial Graduation (Decimal Inch) | 0.001000 |
| Dial Reading | 1-100 |
| Dial Diameter (Decimal Inch) | 1.6250 |
| Dial Diameter (Inch) | 1-1/2 |
| Stem Diameter (Decimal Inch) | 0.3750 |
| Traceability Certification Included | NPL |
| Dial Color | White |
| Thread Size | #4-48 |
| Revolution Counter | Yes |
| Features | Revolution Counter, Rigid, Forged Brass Housing |
| Includes | Certificate of Calibration Traceable to NPL, Flat and Lug Back, Tolerance Pointers |
| Standards | AGD Group 2, ASME B89.1.10M-2001, Certificate of Calibration Traceable to NPL |
| Range Per Revolution (Decimal Inch) | 0.1000 |
| SPI Part Number | 14-654-8 |
| Unit of Measure | English |
